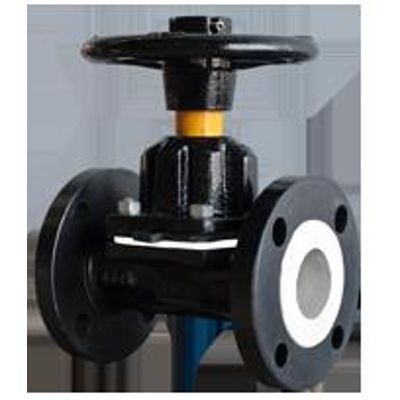

KDV- Straight Through type Diaphragm Valves - Plastic Lined

KDVs Straight Through Type Diaphragm Valves offer exceptional durability, reliability and control. The clean design completely isolates line media from the mechanical components of the valve.

Most popular related searches

diaphragm valve

Features & Benefits
Bubble-tight shutoff (Class VI)
Cavity free design
Easy/low maintenance
In-line serviceable (top entry)
No stem seal leakage
Standard Position indicator

Applications
Abrasive chemicals
Acids (sulphuric, hydrochloric,nitric)
Highly corrosive slurries
Minerals reduction chemicals
Hydro metallurgy
Organic sludge
Effluent treatment
Lime solutions
Caustics

Specification

Nominal Size:
DN15-DN150
Face to Face:
BS, DIN, MSS
Flange Drilling:
ANSI#125/150, PN10/16, Table D/E, JIS
Pressure:
10 Bar
