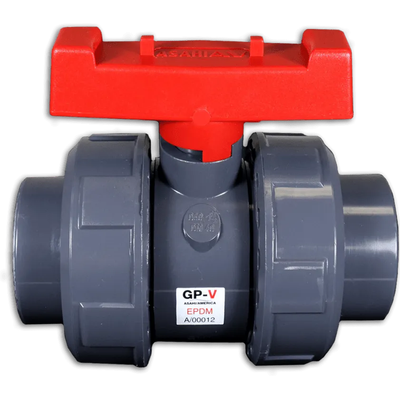

Asahi-America - Model GP-V -Plastic Manual Ball Valve
The GP-V general purpose plastic manual ball valve is engineered for use in water applications like pools and water parks and light chemical service duty. It has a maximum operating pressure of 150psi*. It can not be actuated and should not be used in aggressive chemical and demanding industrial applications. Please refer to our Type-21 ball valve for these applications.
Most popular related searches
ball valve
thermoplastic ball valve
manual valve
thermoplastic valve
valve actuator
actuated valve
tool carrier
pressure seal
Size:
1/2″ – 4″
Max. Operating Pressure
150psi*
*Please contact Asahi/America engineering regarding operating pressure
Body Material:
PVC
Seals Materials:
EPDM or FKM
Body Type:
True Union
End Connector:
Combination (Socket and Threaded)
- PVC-U body
- Max. operating pressure: 150psi*
- *Please contact Asahi/America engineering regarding operating pressure
- Comes with both socket and threaded end connectors
- EPDM or FKM seals
- True union design
- Dual stem O-rings
- Handle doubles as carrier adjustment tool
- Manual handle actuation
- On/Off service
- Full port
