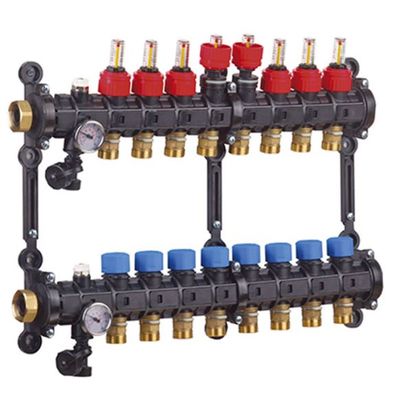

Plastic Modular Manifold
Performances: Fluids accepted: water, glycol solutions, % glycol max: 50%, Working temperature: 5÷55 °C, Max temperature: 90 °C at 3 bar, Working pressure: 0÷6 bar, Max pressure: 10 bar, Burst pressure: > 22 bar at room temperature > 15 bar at 50 °C.
Most popular related searches
Supply port c/w flowmeter model RTRGMD-M
- Flow-rate range: 0÷5 l/min
- Deviation percentage: + 15%
- Max torque to adjust the flow-rate: 1 N•m (please use the proper adjusting key)
- Kv flow coefficient when fully open: 2,04
- Kv flow coefficient at 5 l/min: 0,31
- Kv flow coefficient at 4 l/min: 0,26
- Kv flow coefficient at 3 l/min: 0,20
- Kv flow coefficient at 2 l/min: 0,13
- Kv flow coefficient at 1 l/min: 0,07
Return port for thermo actuator model RTEV-M
- Kv flow coefficient: 2,80
- Stroke of inox pin: 2 mm.
Materiali
- PA12 - AISI - PA6,6 - EPDM perossidico - POM - Ottone
