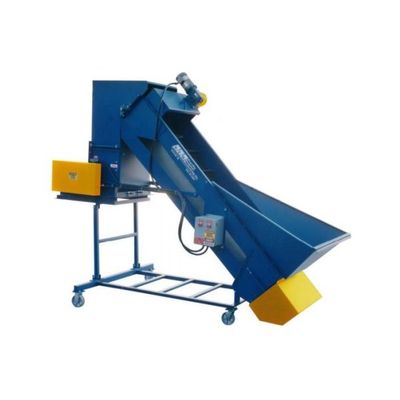

REM - Model Perf-5, Perf-7.5 -Plastic Perforator
Reduce plastic bulk and increase the productivity of your baler with the PERF-5. The PERF-5 is a rugged and efficient plastic perforator/crusher designed to tear and flatten H.D.P.E. and P.E.T. containers. The tearing feature reduces spring back, allowing for easier storing and denser baling.
Designed for P.E.T. and H.D.P.E.
The PERF-5 is capable of processing over 900 lbs. of P.E.T. plastic per hour. A 24″ PVC conveyor belt with 3″ cleats carries the containers into a crushing chamber, where knives on the rotating steel drum perforate the container. Finally, the processed material is discharged into a gaylord box or baler.
Advanced Design
The PERF-5 makes use of REM‘s proven design with the same rugged steel construction used in our other recycling machines. Standard features such as a heavy-duty conveyor belt with permanently bonded cleats and quick release mechanism on the pressure plate make this machine a low maintenance, long-lasting addition to your business.
- Capable of processing over 900 lbs. of PET plastic per hour
- Heavy-duty PVC conveyor belt with permanently bonded 3” cleats
- Steel crushing drum with hardened perforating knives
- Motor speed-reducer and chain-drive conveyor
- All steel construction
- 24” PVC conveyor belt with 3” cleats and Flexco 125 Megalloy Lacing
- 1/2 cubic yard conveyor hopper
- External tail-pulley adjustment
- 3/4 HP conveyor motor
- 5 HP crushing motor
- 6” industrial steel casters
- 240/480 volt, three phase
- Electrical components are UL listed
- NEMA-4 (hose proof) enclosure
- Magnetic starters
- Individual motor overload/short circuit protection
- Safety interlock on perforating chamber door
- 208, 380, 415, or 575 volt, three phase
- Custom conveyors, hoppers, and discharge heights
- As a mechanism for a platform, stand, or hopper
- If you don’t see it, ask us!
