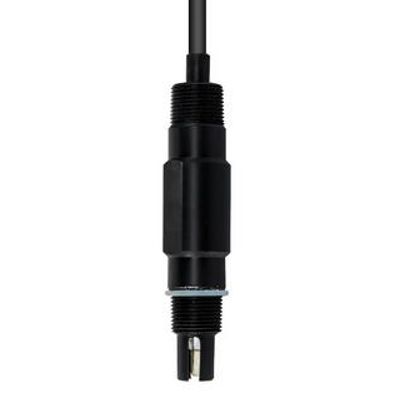

Meacon - Model MIK-PH5019 -Plastic pH Sensor
MIK-PH5019 plastic pH sensor is widely used in wastewater treatment and fields including mining and smelting, papermaking, paper pulp, textiles, petrochemical industry, process of semiconductor electronic industry and downstream engineering of biotechnology.
Most popular related searches
pH sensor
wastewater oil
industrial wastewater
wastewater containment
wastewater engineering
process monitoring
wastewater treatment
industrial wastewater process
wastewater industry
industrial process monitoring
- Zero potential point:7 ± 0.5 pH
- Slope: > 98%
- Installation size: 3/4NPT
- Pressure: 1 ~ 3 Bar at 25 ?
- Temperature: 0 ~ 60? for general cables
- Product: pH sensor
- Model: SUP-PH5019
- Zero potential point: 7 ± 0.5 pH
- Slope: > 98%
- Membrane resistance <250ΜΩ
- Practical response time: < 1 min
- Installation size: 3/4NPT
- Measurement range: 1 ~ 14 pH
- Salt bridge: Porous TEFLON
- Temperature compensation: 10 KΩ/2.252KΩ/Pt100/Pt1000
- Temperature: 0 ~ 80? for general cables
- Pressure: 1 ~ 3 Bar at 25 ?
- Industrial wastewater engineering
- Process measurements, electroplating plants, paper industry, drinks industry
- Wastewater containing oil
- Suspensions, varnishes, media containing solid particles
- Two-chamber system for when electrode poisons are present
- Media containing fluorides (hydrofluoric acid) up to 1000 mg/l HF
