Jiangbei - Model LXH-s -Plastic Volumetric Rotary Pistion Water Meter

Plastic Volumetric Rotary Pistion Water Meter Class C LXH-s is a plastic rotary piston water meter with the mechanical transmission and liquid-sealed register, for residential application in sizes 15mm and 20mm for cold water. Features * All the components are produced by high-resistance.

• All the components are produced by high-resistance and qualified materials, technical plastics and stainless steel parts.
• The most reliable composite material for the body to ensure strongest and the longest lifetime.
• Ensures high sensitivity and accurate registration throughout a wide flow range.
• Mechanical transmission movement with the maximum reliability; no influence from the external magnetic field.
• Liquid-sealed register. The rollers are protected by a special liquid, encapsulated from water, ensures a clearing reading in any operating conditions.
• Low starting flow rate.
• Suitable for any position installation.
• Internal on return valve to avoid the reserve flow rate.

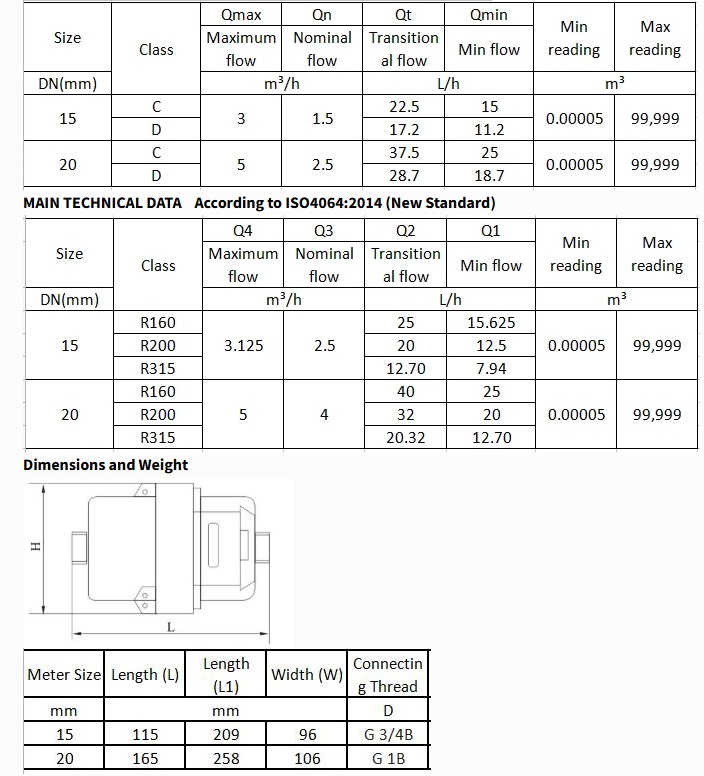

• Internal strainer. Standard Compliance Technical data conforms to ISO 4064 Class C, R160, R200 standard.

• Model NO.: LXH-Es
• Nominal Diameter: 15-20mm
• Series: Volumetric Water Meter
• Work Environment: Dry Water Meter
• Working Pressure: 1.0 MPa or 1.60 Map
• Dial: Dry
• R=Q3/Q1: 160/200
• Class: C/D
• Pulse Output: With or without
• Trademark: JIANGBEI/OEM
• Transport Package: Export Carton
• Specification: Plastic body and plastic connections
• HS Code: 90282010

• Meter body: Brass, plastic for selecting.
• Can be equipped with reed switch option.
• Pulse output pre-equipped (ready for remote-reading) at 0.5 liter/pulse.
• The Pulse output Device consists of a plastic housing with Reed Switch, and 1,5 m cable with 2 cores in Red  and Black.
• Electric Data: Vmax=24AC/DC, Imax=0,01A
• Capacity of the Pulse output or Pulse output pre-equipped: Size Dn15 & Dn20, Pulse Emitter Capacity 1 liter / 2pulses)

• Water temperature: ≤50ºC for cold water meter
• Water pressure:  ≤1MPa or 1.6MPa optional (10bar or 16bar optional)

• The meter can be installed in any position.
• Pipeline must be flushed before installation.
• The meter should be constantly full of water during operation.
• The meter must be installed with the direction of the flow as indicated by the arrow cast in the meter body.

• Each water meter has one set couplings optional: 2pcs tube, 2pcs nut and 2pcs gasket.
