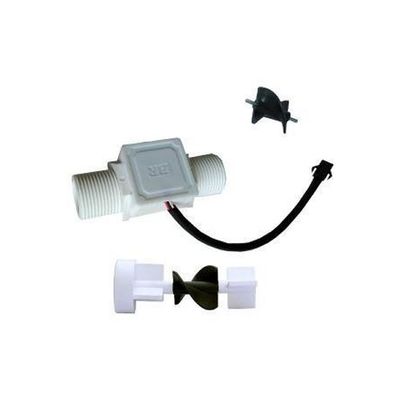

BROILTECH - Model BT PHTFS -Plastic Water Flow Sensor

Material of construction:

• Enclosure : PA66 + GF
• Rotor : PA66/POM/PPS
• Shaft : Hard Stainless Steel-316
• bearing : carbon/pom with hard S.S. BALL
• Accuracy (standard installation position) : +/- 0.5 or 1% FSD
• Repeatability : 0.05%
• Maximum working pressure : 2.5 MPa
• Fluid &Ambient temperature: -40 to 120 Deg. C
• Connection: Thread (M)
• 1) Pulse output sensor :
• a) Hall sensor
• Power voltage: 5 to 24 V DC/ Low power: 2 to 5 V DC
• Output signal: NPN open connector
• Output:
• high electric level : High than 4.5 VDC( input voltage 5 VDC)
• low electric level : lower than 0.5 VDC( input voltage 5 VDC)
• b) Reed sensor
• c) pick up coil - two wire/ amplified three wire option

• Water flow sensor with food grade plastic material,
• Very good repetability
• working temperature up to 120 deg c
• available with optional battery operated display and panel mount display

• Helical rotor water flow Sensor are positive displacement meters with a very favorable low pressure drop behavior.
• therefore perfectly suited for the flow measurement of very high viscosity fluids.
• Due to wide measuring ranges, high accuracy and resolution helical flow meters are an excellent choice for
• laminating systems, painting systems, adhesive dispense systems, as well as batching systems for various fluids.

• Pure Water
• Heat/BTU
• Hygienic Liquid
