Koop Power Machinery Co., Ltd

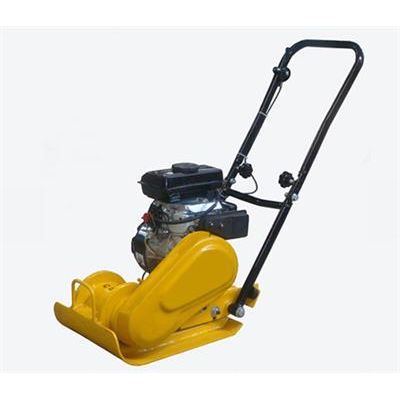

Koop - Model KGP50PC -Plate Compactor
Easy-to-service design mainly for DIY users. Designed for compaction in confined areas of granular soil in narrow trenches. These plates are ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works and building construction.
Most popular related searches
- Foldable handle for easy transportation and stock. （straight handle is also available）
- Open plate provides self cleaning
- Complete sealed belt cover to prevent sand and soil in.
- Built-in wheels for easy transport.
- Radius base plate for easy access to corners
- Throttle control for easy holding working speed.(Throttle control is available as optional)
- Heavy-duty shock mounts reduce vibration to the upper engine and handle.
- Engine Type LF152
- Power (Hp) 2.5
- Operating Weight (kg) 46
- Size of Base Plate (LxW) (cm) 43x31
- Max.Centrifugal Force (KN) 8.2
- Vibration Frequency (vpm) 5900
- Compaction Depth (cm) 20
- Forward Speed (cm/s) up to 37
- Compacted Area (m2/hr) up to 350
- Gradeability 30%
- Operating Dimension (LxWxH) (cm) 90 x 31 x 88
- Shipping Size(LxWxH)(cm) 59 x 38 x 56
