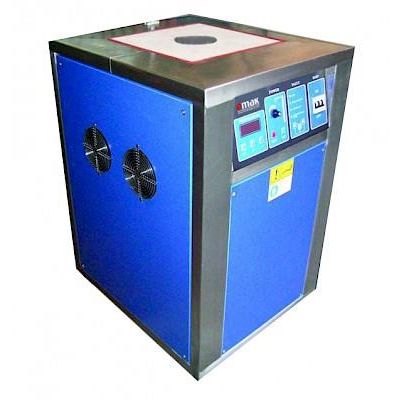

EmakModel PL1 -Platinium and Palladium Melting Furnace

SHARE

PL1 Induction Furnace is specially developed for melting gold and Platinum Group Metal (PGM) bullions. It melts 1 kg platinum in about 15 minutes, 1 kg 0,995 pure gold bullion in approximately 5 minutes. The maximum temperature level is 2300°C. The most efficient and fast way to melt precious metals is a induction furnace. Our induction Furnaces are comes with External Cooling Systems for continuous operation. EMK Induction Systems are design to work in the most difficult conditions.

Most popular related searches
  • Unit Name: PL-1
  • Capacity:
    • 1Kg 995 Pd
    • 1Kg 995 Pt
    • 1Kg 995 Au
    • Melting Pot: A1 Ceramic
    • Power: 15Kw + 380V, Triphase
  • Dimensions (WxLxH): 90 x 90 x 90 cm
  • Weight: 70Kg
  • Place of Origin: Turkey
  • Cooling Unit: 110x70x90
