Platinized Titanium and Niobium Anodes
Ti Anode Fabricators Pvt Ltd., India offers Platinized Titanium Anodes and Platinized Niobium Anodes for Electrochemical and Metal Finishing Industry applications Electro dialysis. Electroforming. Cathodic Protection. Electrochemical Sensing. Electro winning and Refining of metals. Electrolytic Regeneration of chromic acid. Electroplating for precious and base metals. Electrolytic recovery for precious and base metals. Electrolytic Production of Sodium Hypochlorite. Electro synthesis of Inorganic & Organic chemicals.
Most popular related searches
metal finishing industry
electro dialysis
metal finishing
cathodic protection
sodium hypochlorite
electrochemistry
metal recovery
precious metals recovery
chromium
Specifications
| Description | PTA | PNA | MMOA |
| pH Level: (range) | 1.0-12.0 | 1.0-10.0 | 1.0-12.0 |
| Platinum / mixed oxide layer tk. | 1.5-20.0 | 1.5-15.0 | 8.0 |
| Fluorides content (max) | 50mg/l | 500mg/l | 50mg/l |
| Allowable current (max) | 50A/dm2 | 100A/dm2 | 50A/dm2 |

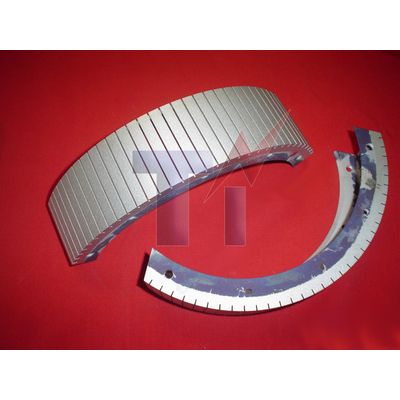

Platinized Titanium & Niobium Anodes are available in mesh, plate, sheet, rod, wire, tube and custom-built.
Availability
- Platinum plated Titanium (Platinized Titanium) anode 1250 mm x 1000
- Platinum plated Niobium (Platinized Niobium) anode 900 mm x 500
- Plating thickness minimum 1.5 µ & max 20 µ
Advantages
- Low weight.
- Good current resistance.
- Long operating life: maintenance free.
- Economical, due to low platinum requirements.
- High dimensional stability and load resistance.
- Highly suitable as auxiliary anodes of complex geometrical shapes.
Recommendation
- Plated & Non-plated hanging hook, frame / band.
- Platinum Plated Titanium for electrolytes without fluoride.
- Platinum Plated Niobium for electrolytes having fluoride.
- Platinum Plated Niobium for where we need better conduction. Niobium has three times conductivity of Titanium.
- Platinum Plated Niobium for Sulphuric acid chromium plating bath operated at current density greater than 75 amps / dm2.
