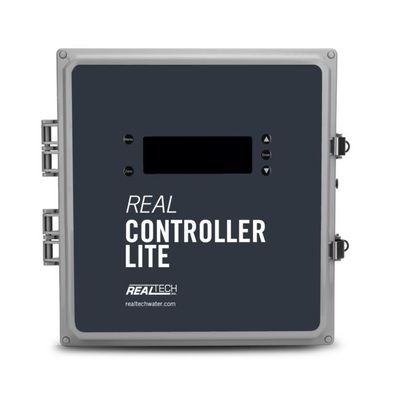

Real-Tech - Model S-229005 - LITE -Plug-and-Play Controller
The plug and play Real Controller Lite provides a simplified version of the Real Controller. Featuring a character LCD display, hierarchical menu system and correlation software. A single Real Tech sensor or multiple sensors and peripheral accessory devices can easily be controlled and configured from one location. Modbus RS485 is standard. Optional upgrades include 4-20 mA, digital I/O dry contacts, Modbus TCP, and cell modem.
Most popular related searches
- Simple to operate and control
- 4 line x 20 character backlit LCD
- Comprehensive hierarchical menu system
- Multiple sensor and accessory integration
- Modbus (RS485) output standard
- Optional 4-20 mA, digital I/O dry contacts, Modbus TCP, and cell modem
CHARACTERISTIC: TECHNICAL DATA
- Compatibility: All Real Tech sensors, except PL, GL and GA series sensors, and Real Tech accesories except for Real Pump Clean Pro.
- Display: 4 line x 20 character backlit LCD with LED indicator
- Operator Interface: Five push buttons to control a comprehensive hierarchical menu system
- Alarms: Display of sensor specific alarms.
- Inputs: Proprietary inputs for multiple Real Tech sensors and accessories, Modbus RTU (RS485), and Modbus TCP.
- Optional: 4-20 mA inputs, Digital inputs.
- Communication: Modbus (RS485) standard.
- Optional 4-20 mA output, Digital I/O expansions, Modbus TCP and cell modem
- Data Logging: Onboard. 6-month nominal (configuration dependent). Optional remote data logging. Export data via USB.
- Electrical: 24VDC power adapter (accepts 90-250VAC 50/60Hz)
- Enclosure: NEMA 4, wall mountable
- Dimensions: 10.25”H x 10.25”W x 5.5”D
- Operating Temp: 0 to 45°C (32 to 113°F)
- Storage Temp: -20 to 60°C (-4 to 140°F)
- Weight: 8 lb
- Warranty: 2-year limited warranty
