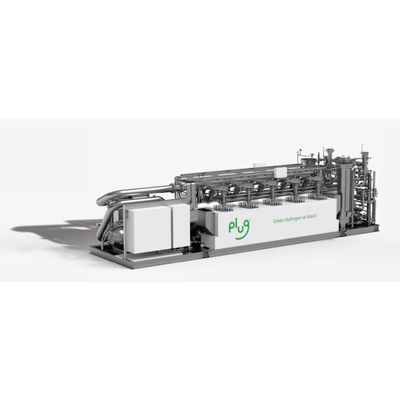

Plug GenEco - Electrolyzer System

Instant Load Following
Hydrogen production rale adjusts as electric capacity is available, making this a perfect product for use with grid or renewable energy resources.

Flexible
Operation range covers sub-MW

Scalable
Modular building blocks enable custom-sizing to meet any demand from megawatts to gig awaits.

Input

• Stack Power Consumption Up to 10MW
• Voltage & Frequency 4.1 to 34.5kVAC 60HZ (USA) 11 to 33kVAC 50HZ (EU)
• Water Consumption 13 liters per kg of H2 produced

Output (Hydrogen Gas)

• Volume 2,000 Nm3 / hour
• Mass 4,250 kg / day
• Purity Up to 99.999% (ready with additional H2 treatment package)
• Pressure 40 barg / 580 psig (w/o compressor)

Operational

• Start Up Time 60 sec ramp up time
• Average Stack Eciency 49.9 kWh / kg
• Load Following 1.66%/sec
• Physical / Environment
• Installed Footprint 117.2m2  / 1,280 ft2
• Ambient Temperature -20°C to +40°C (wider temperature range optional)

Other

• Compliance / Certications ISO 22734, NFPA 2, CE
