Keestrack - Model S1e -Plug-in Electric Stacker S Series
FromKeestrack N.V.

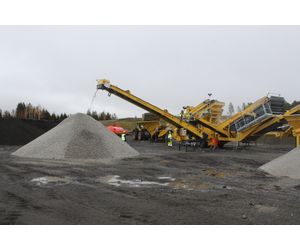

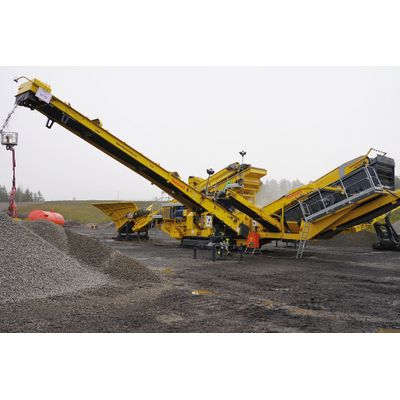

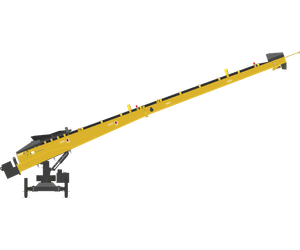

The S1e semi-mobile plug-in electric stacker creates a radial stockpile. The ultrasonic sensor swivels the stacker automatically 180° and minimizes loader traffic, labor and fuel costs and optimizing on-site safety. The S1e can be connected to all Keestrack 'e'-versions but can also be connected to plug-out connections of other brands, mains or gen-sets.Most popular related searches
- Automatic swiveling via ultrasonic sensor to create radial stockpile
- 75% cost saving capacity compared to a loading shovel
- Very good stockpiling capabilities
- Main conveyor 650 mm (2'2") wide, 10.500 mm (34’5") long
- Feed capacity up to 280 tonnes an hour
- Available in electric plug-in version
- Stockpile capacity from 450 to 2.900 ton
- Discharge height from 5,3 meter (17'5") to 6,35 meter (20'10")
- Weight
5,45 t (6 sT)
5,45 t (6 sT) - Length
12.000 mm (39'4")
12.800 mm (41'11") - Height
2.350 mm (7'9")
6.350 mm (20'10") - Width
1.280 mm (4'2")
1.900 mm (6'3")
- Stockpiling
- Transport
- Loading
