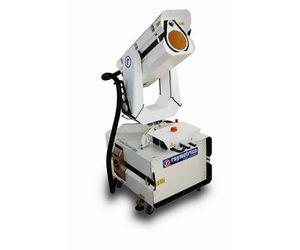

PM Scanning Sensor
New era in remote PM Monitoring. Heavy industry mining and metal processing companies are constantly in search of suspended particles emissions mitigation solutions in order to minimize their relevant footprint. LIDAR technology can address this challenge offering remote sensing of aerosols at long distances with up to several kilometres’ radius of detection. Aerosols concentration and plumes dispersion 4D monitoring, characterization, source localization and load contribution, incoming (background) pollution monitoring and virtual fencing are the keystones that LIDAR technology is capable to offer for such applications. ISO 9001:2015 certified.
- Urban and industrial processing activities can result in the release ofPM particles into the air.
- PM, can have a crucial impact on air quality
- Monitoring of such parameters is of great importance to minimize impacts and operations management.

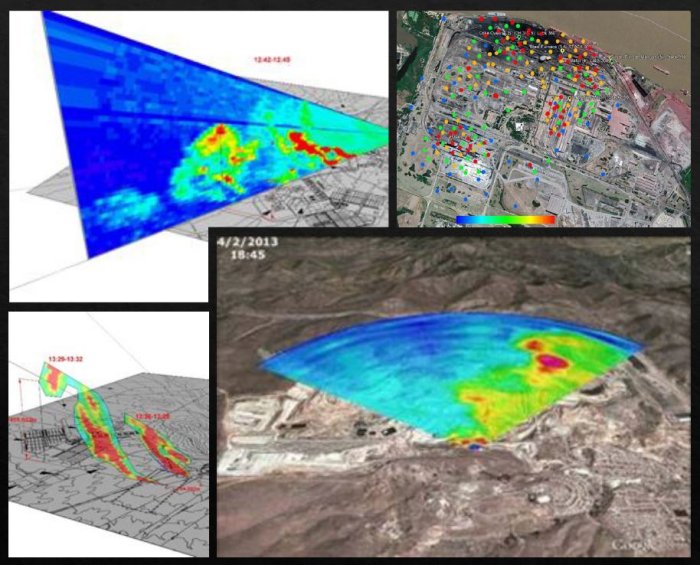

Identification and mapping of all possible pm sources related realtime remote pollution monitoring
- Wide coverage: A single lidar can cover 5Km2 area and identify all PM sources.

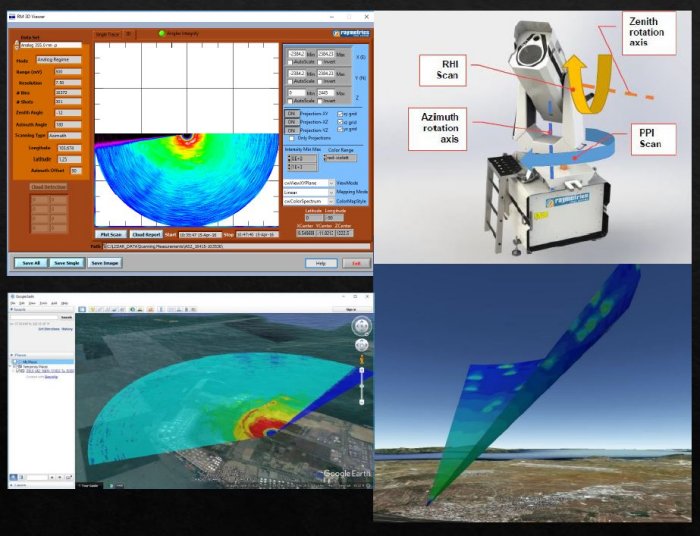

- 3D monitoring: Lidars is the only technology that can monitor horizontal and vertical PM dispersion
- High sensitivity: Lidars are highly sensitive to PM particles and can identify them even when they are not visible by eye or a video camera.
- Real-time information: All data are provided in real-time, giving a good understanding of the temporal behaviour of the PM productions.
- All critical optical components are fully characterized for depolarization effects.

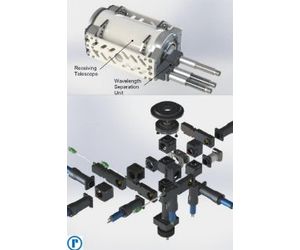

- The custom-built telescopes use carbon-fiber structure for maximum thermal stability and are designed to maximize their optical efficiency for lidar application.
- The custom-built wavelength separation units provide robust, fully sealed, and upgradable detection system.
- Automated depolarization calibration
- Radar connectivity
- Integration with other sensors
- Camera-based motorized alignment
- Advanced measurement scheduling
- External monitoring cameras
- The benefit of real time monitoring is that you know how much PM is in the air in real-time.
- The operational advantages of real time monitoring are considerable.
- The PMeye sensor, can trigger an alert the very minute that PM levels increase beyond an acceptable level.This gives the local authorities a chance to respond accordingly.

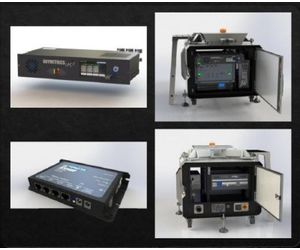

- Fully automated and remotely controlled operation.
- Advanced measurement scheduling capabilities, e.g. continuous operation or pre-defined weekly schedule.
- Measurement scheduling through Web API.
- Motorized alignment.
- Ergonomic design for easy maintenance.
- Automatic uploading of measurement data to FTP server.
- Web-based browser of measurement archive. Automatic alerts for system maintenance Temperature and humidity-controlled enclosure.
PM sensor:
- Totally Remotely controlled
- Smart automations
- Embedded visible or IR camera*
- Attached weather station
- In situ dust trackers (optional)
Software solutions for:
- DataVisualization(+Google Earth), Data Analysis
- Advanced Novel techniques for PM concentration studies
- Advanced Statistical Analysis
- Network Server Side solutions
- Dispersion Forecasting Solution
- Warning Scenarios
