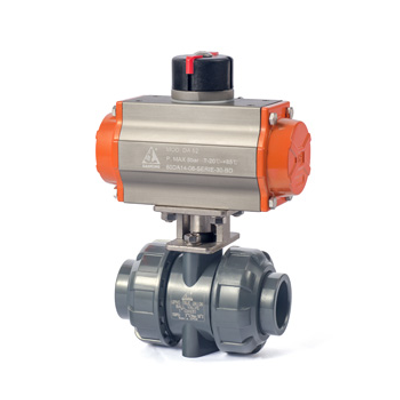

Sandeng - Pneumatic Actuated True Union Ball Valve

Material: UPVC,CPVC,PPH,PVDF. Size: 1/2''-4''; 20mm-110mm; DN15-DN100. Standard: ANSI,DIN,JIS. Joint End: Socket, Threaded(NPT,PT,BSPF), Fusion, Welding. Working Pressure: 150 PSI. Operating Temperature: UPVC(5~55℃); CPVC&PPH(5~90℃); PVDF(-20~120℃).  Actuator's Lowest Air Pressure: 45PSI;Max.Operating Pressure: 120PSI. Valve body color: UPVC(dark gray), CPVC(light gray), PPH(light yellow), PVDF(ivory)
