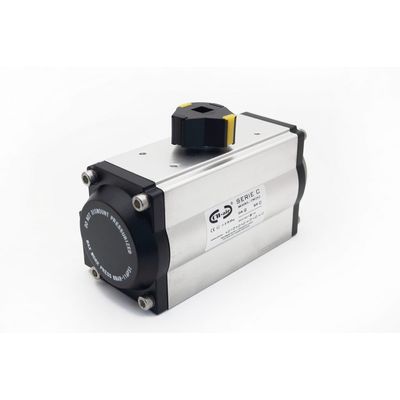

JJ-BCN - Model CN/Hard Anodised -Pneumatic Actuator

The position indicator (dome viewer) is adjacent to the visual control of operation (LED), Located at the top. The actuator may be placed in manual or automatic mode using the selector lever , located one side of the actuator base. The manual override which is also located on the top, allows the actuator is manually operated.
This model is mounted on the valve using a multi F-ISO5211 F07 / F10 flange. The actuator is protected against any mechanical damage caused by excessive torque, using its electronic torque limiter system . This model offers the possibility of incorporating a digital positioner system DPS 2005 and 2015 BSR (return emergency battery), among other options.

• Multivoltaje  85 – 240 VDC/VAC
• Maximum torque Boo 170 Nm / 1504,5 lb/in
• Maximum Operating couple  140 Nm / 1239 lb/in
• Degree of protection  IP67
• surroundings  anticorrosive polyamide (body and lid)
• Major external axes   Stainless steel
• Exterior Screws Stainless steel
• gears Steel and polyamide
• Visual Position Indicator Polyamide
• vision Dome Polycarbonate
• Internal adjustable cam Polyamide
• Motor monophase
• Isolation B
