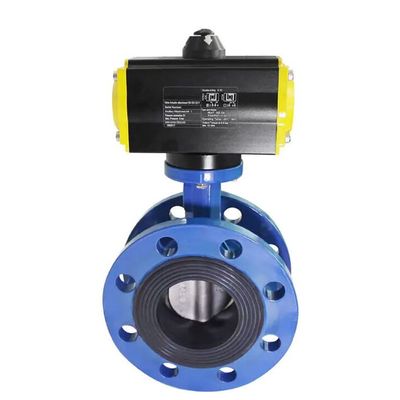

MFRS - Pneumatic Actuator Butterfly Control Valve
Our Pneumatic Actuator Butterfly Control Valve Maker offers a comprehensive range of valves designed for diverse industrial applications. These valves are available in sizes from 2 to 20 inches, corresponding to DN50 to DN500, and are constructed from robust Cast Iron and Stainless Steel materials for enhanced durability and corrosion resistance. They are rated for Class 150 to Class 600 LB standards, with a pressure rating range of PN20 to PN100, ensuring they can handle a wide variety of pressure requirements.
Most popular related searches
pneumatic actuated butterfly valve
pneumatic actuator
control valve
butterfly valve control
pneumatic actuator valve
butterfly valve
water network
industrial process water
ASTM A351
actuated valve
- Product Name: Pneumatic Actuator Butterfly Control Valve
- Material: Cast Iron, Carbon Steel ASTM A216 WCB, Stainless Steel ASTM A351 CF8, ASTM A351 CF8M
- Seat Material: Rubber, PTFE
- Disc Material: Cast Iron,Stainless Steel
- Nominal Size: 2-20 Inch, DN50-DN500
- Pressure Rating: Class 150-600 LB, PN20-PN100
- Connection Type: Wafer
- Working Temperature: -30? - 180?
- Mode of Action: Double-Acting/Single-Acting(Spring Return)
- Operation: Pneumatic Actuator
- Applications: HVAC Systems, Industrial Processes, Water Distribution Networks etc
- Larger Size: Equipped with a longer air cylinder, resulting in higher air consumption.
- Stability: Features a reliable pneumatic actuator for consistent long-term performance.
- Cost-effective: Offers lower initial costs and requires less maintenance, ensuring a long service life and reduced overall operational expenses.
- Corrosion Resistance: Capable of withstanding over 1,000,000 operational cycles, demonstrating excellent resistance to corrosion.
- Quick and Responsive: Designed for fast and efficient opening and closing.
