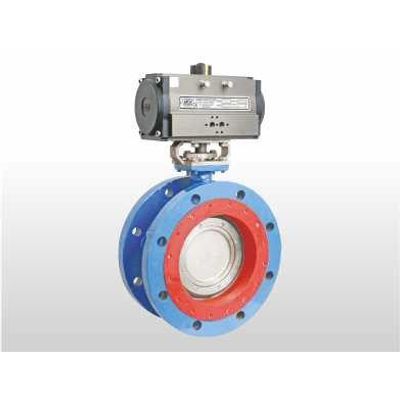

Aira - Model ROD -Pneumatic Actuator Triple Offset Double Flange Butterfly Valve

Model: ROD. Design: Triple Offset Fire Safe Design Double Flange Butterfly Valve. Body: ASTM A 216 Gr. WCB A 351 Gr. CF8 / CF8M / CF3M. Size Range: 3" to 48". Shaft: AISI 410 / 304 / 316. Disc.: ASTM A 351 Gr. CF8 / CF8M / CF3M. Seat : Metal to Metal / EPDM. Leakage: VI as per ANSI B 16, 16.104. Temprature: 120 °C EPDM / 300 °C Metal to Metal. Pressure: 10 Bar. Media: Water / Oil / Gas / Steam / Air / Chemical & Vacuum. End Connection: Double Flanged 150# / 300# / 600#.
