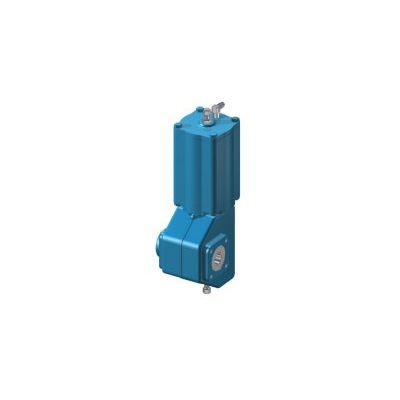

Metso - Model series B1 -Pneumatic Cylinder Actuators
Metso`s Neles double acting and spring return B1-series piston type quarter turn actuators are designed for use in both modulating control and on-off service. These actuators offer an extremely long cycle life and are well suited to operate almost any type of rotary valve.
Most popular related searches
- Wear and corrosion resistant design
- Safe and easy maintenance
- Suitable for various services, from control to demanding ESD and arctic conditions
- Vast number of optional features
- Rugged design
- Wide torque range
- Long cycle life
- Fast and sensitive response
- Unified design thru the whole product range
- Proven reliable design
Series B1C, B1J
Type Pneumatic cylinder actuator
Action B1C - double action
B1J - spring return
Pressure input 2.8 - 10 bar / 40 - 140 psi
Torque output 28 - 100000 Nm / 21 - 73800 ft-lbs
Temperature range -55 to +120 °C / -67 to +250 °F
- Emergency shutdown
- Compresssor anti-surge
- High cycle control and on-off applications
- High precision control
- Arctic service
