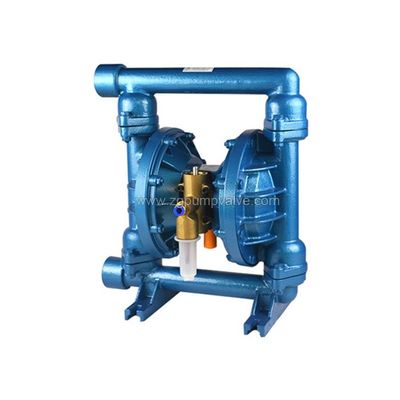

Zigong - Model QBY -Pneumatic Diaphragm Pump

FromSichuan Zigong Pump & Valve Co., Ltd.

SHARE

QBY pneumatic diaphragm pump is the second generation of pneumatic diaphragm pump developed by our company. It uses compressed air as the power source. It can absorb all kinds of corrosive liquids, liquid with particles, volatile and flammable liquid. . The external copper valve developed by our company has super high efficiency.

Most popular related searches

pneumatic diaphragm pump

solid-liquid separator

solid-liquid separation

corrosive liquid

organic solvent

liquid separation

solids separation

Flow rate: Q=0.8～30m3/h
Total head: H=0～50m
Speed: n=1450rpm
Inlet/outlet diameter: 10 - 100mm
Max particle diameter: 1 - 10mm
Suction head: 5～7 m

Idling capacity, self suction, no complex control
Diversity of material, no rotating parts, applicable to various erosive situations
Modularization of main valve and air motor and easy to disassemble and repair
Simple structure, less vulnerable parts, easy installation and maintenance, pump medium will not contact with the distribution valve, rod and other moving parts

A variety of highly toxic, flammable, volatile liquids
Various strong acids, strong bases, strong corrosive liquids
Can transport higher temperature medium 150 degrees Celsius
As a variety of solid-liquid separation equipment before the pressure feed device
Tanker, oil depot, oil handling
Pump pickles, jam, mashed potatoes, chocolate, etc
Pump paint, gum, pigment adhesive
All kinds of tile, porcelain, brick and ceramic glaze paste
All kinds of rubber pulp, latex, organic solvents, fillers
Pump the tanker barge to clear the warehouse and absorb the waste water and residual oil
Hops and baking powder pulp, syrup, molasses
