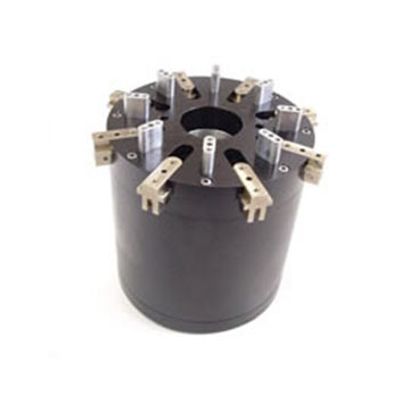

AGI - Model AGP-8-OR -Pneumatic Gripper for O-Ring Placement
The AGP-8-OR Pneumatic Gripper is engineered for precision placement of O-rings through a dedicated hole, leveraging a parallel, double-acting design with synchronized sealed jaws. This gripper is notable for its adjustable stroke, offering a spread of 1.10 inches and an ejecting capacity of 0.55 inches. The gripping force per jaw ranges from 70 to 462 pounds at an operating pressure of 80 psi, with ejector jaws delivering a combined force of 320 pounds. The gripper functions efficiently across a pressure range of 30 to 100 psi, withstanding temperatures from -20° to 180°F. It's constructed from hard-coated aluminum bronze alloys and steel, weighing 8 pounds, and is designed to cater to diverse industrial applications. This model offers exceptional repeatability and is tailored for dynamic and static load capacities, emphasizing design considerations in finger length and height to mitigate friction in application.
- Jaws are T-Slot bearing supported to prevent jaw breakage and offer superior load bearing performance.
- Spreading jaws and Ejector jaws have independent pistons to provide exact timing of O-ring placement.
- Compact design with long adjustable stroke.
True parallel jaw motion for easy tooling and 1.5 inch Through hole.
- Design: Parallel, Double Acting, Synchronized Sealed Jaws, Through Hole
- Stroke: Spread 1.10 in. adj. [27.9 mm]
Ejecting 0.55 in [13.9 mm] - Gripping Force Per Jaw
Spreading jaws have 70-462 lbs. force [each] @80 psi.*
Ejector jaws have 320 lbs force [combined] @80 psi. - Time:
Close: 0.2 sec [0.2 sec]
Open: 0.2 sec [0.2 sec] - Pressure Range:
Low/High 30-100 PSI [2-7 BAR] - Temperature Range:
Low/High -20°/180°F [-28°/80°C]
Side Play: ± 0.001 [.03 mm] - Repeatability from center:
± .002 [.06 mm] - Loading Capacity: Static – Dynamic
- Max Tensile T
100 lbs 30 lbs
[445 N] [130 N] - Max Compressive C
100 lbs 30 lbs
[445 N] [130 N] - Max Moment Mx
200 in/lb 50 in/lb
[22 Nm] [6 Nm] - Max Moment My
230 in/lb 60 in/lb
[23 Nm] [6 Nm] - Max Moment Mz
200 in/lb 50 in/lb
[22 Nm] [6 Nm] - Material: High Strength,Hard Coated aluminum bronze alloys, Steel
- Weight: 8 lbs [3.6 Kg]
