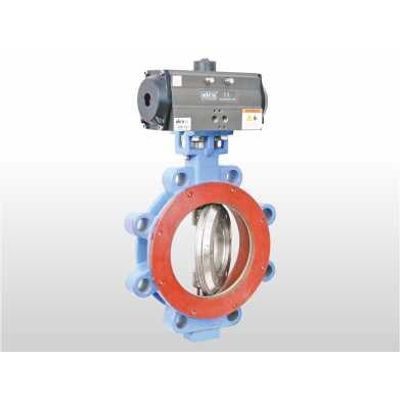

Aira - Model TOB - LT -Pneumatic Lug Type Butterfly Valve
For your ease and safety, aira euro has manufactured a Pneumatic Rotary Actuator Operated Triple Offset Lug Type Butterfly Valve with Fire safe design to prevent accidents in your work area.
Materials:
We use ASTM A 216 Gr. WCB A 351 Gr. CF8 / CF8M / CF3M casting material for Body, AISI 410 / 304 / 316 for Shaft, ASTM A 351 Gr. CF8 / CF8M / CF3M for Disc, and Metal to Metal / EPDM material for Seat.
Specialty:
This valve is available in 1.½” to 48” in size can easily sustain pressure up to 10 BAR and temperature up to 120°C in EPDM material and 300°C in Metal to Metal. It comes up with VI leakages as per ANSI B 16, 16.104, and Lug type End connections.
Where to use:
These valves are useful to control the flow of Oil/ Gas/ Steam/ Water/ Air/ Chemical & Vacuum. So it is very useful in Oil refineries, Petro- Chemical Plants, Gas Plants, etc.
- Model: TOB - LT
- Design: Triple Offset Fire Safe Design Lug Type Butterfly Valve
- Body: ASTM A 216 Gr. WCB A 351 Gr. CF8 / CF8M / CF3M
- Size Range: 1.1/2" to 48"
- Shaft: AISI 410 / 304 / 316
- Disc.: ASTM A 351 Gr. CF8 / CF8M / CF3M
- Seat: Metal to Metal / EPDM
- Leakage: VI as per ANSI B 16, 16.104
- Temprature: 120 °C EPDM & 300 °C Metal to Metal
- Pressure: 10 Bar
- Media: Water / Oil / Gas / Steam / Air / Chemical & Vacuum
- End Connection: Lug Type
