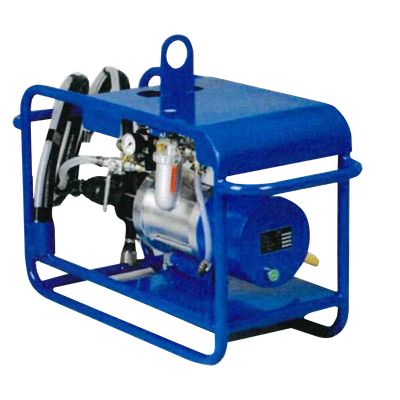

Petrometalic - Pneumatic Piston Pump For Injection Of Bi-Component Resin
FromPetrometalic SA
Conceived for a use in galleries/tunnels, the pump is adapted for bi-component resin and acrylic gels. lt is made of big -dimension valves and pistons in order to allow the pumping of very viscous mixings as well.
Most popular related searches
pneumatic piston pump
emergency stop buttons
emergency stop
pressure regulator
piston pump
booster pump
air regulations
tunnelling
manometer
piston valve
- lncluded: Outlet manometers with protector, aspiration pipe, air pressure regulator with a condensating filter and an emergency stop button.
- Not included: supply hose & mixing head (only available in option), Steck-O fitting (on request).
- Some models are frame mounted pumps on wheels.
- Air pressure : max. 7 bar
- Injection pressure : max. 160 bar
- Injection flow : 18 l/min *
- Sound level : 45 dB (A)
- Dimensions : 1120 x 410 x 430 mm
- Net weight : 75 kg
