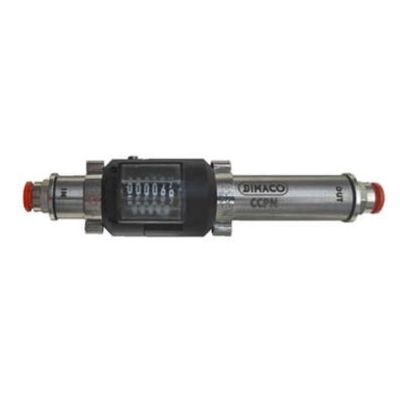

Dimaco - Model CCPN-S Series -Pneumatic Stroke Counters
FromDimaco sas
The pneumatic stroke counter installed in the pump`s air supply line allows indirect measurement of the pumped fluid through ON/ OFF cycles (both with automatic pumps and pumps managed by an external control panel). Other applications: the device can also be used for Fluids, in systems with alternative positive displacement pumps.
Most popular related searches
In the standard configuration, it is supplied with 8 mm pipe fitting but can be equipped with 10 mm pipe fitting or 1/4” male or female threaded inlet/outlet.
The stroke counter can be supplied only with a reed contact sensor for connection to PLC or external control systems or with both mechanical display and reed sensor.
- CCPN-S-M: mechanical 6-digit display
- CCPN-S-E: reed contact sensor
- CCPN-S-ME: mechanical display + sensor
- External diameter (body): 20 mm
- body material: SS AISI 303
- display housing material: POM
- spring material: stainless steel
- slider material: PTFE
- total length: 140/150 mm*
- position of installation: omnidirectional
- maximum working pressure: 10 bar
* variable according to the fittings mounted
