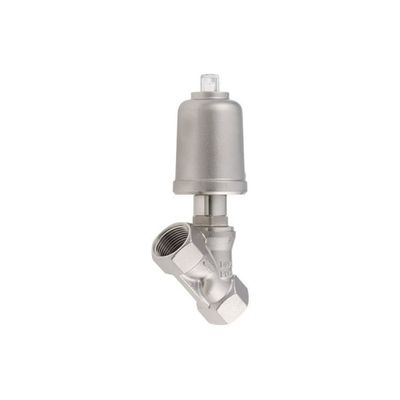

Schubert & Salzer - Model 7010 -Pneumatically Operated Angle Seat Valve
Pneumatically operated angle seat valve is the extremely reliable allrounder in valve technology and is predestined for very high switching capacities. In stainless steel design for neutral and aggressive media but also for a wide range of temperature applications suitable. The angled seat design offers a high flow rate.
Most popular related searches
angle valve
pneumatically operated valve
pneumatic valve
valve operator
manual override valve
stainless steel plate magnet
manual valve
degreaser
- Size: DN 8 - DN 80
- Pressure: PN16, PN40
- Material:
- Stainless steel 1.4408
- Bronze 5 (Rg 5)
- Brass
- Temperature:
- Media temperature: -30°C to +170°C
- Application from -100°C up to +220°C
- Connection
- Whitworth pipe thread
- NPT thread
- Welding ends
- Tri-clamp connection
- Special connections
- Accessories
- Limit switch
- Pilot valve
- Manual override
- Body variants
- Stainless steel
- Bronze
- Brass
- Actuator variants
- Piston actuator of
- Brass (chrome plated)
- Stainless steel
- Polymer
- Stainless steel diaphragm actuator
- Application
- Gases, vapours, fluids
- Versions
- Low temperature version
- Pressure balanced version
- Version with approval according to DIN 161
- Degreased version, Silicon or PTFE-free version
