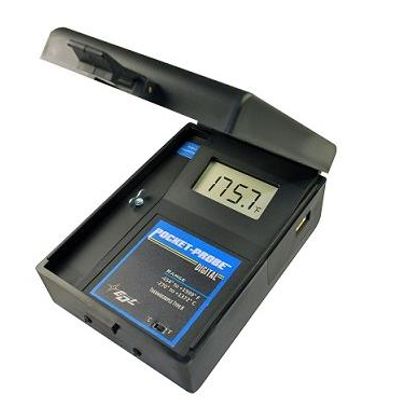

Pocket-Probe - Digital Pyrometer
The Pocket-Probe® Digital was engineered to be rugged, reliable, and consistently accurate. This workhorse of a pyrometer is known to provide repeatable measurements. These pyrometers offer a 0.1° resolution up to 199.9 °F or °C. The Pocket-Probe® is easy to use and easy to read. It is ideal for use in the lab or on the production floor. The instrument is compatible with any mini-plug terminated sensor of the same thermocouple type. Made in the USA, this pyrometer is constructed from the finest materials and is backed with an unconditional 5-year warranty!
Temperature Ranges:
- Thermocouple Type (K) Temperature Range: -270 °C to 1372 °C (-454 °F to 1999 °F)
- Thermocouple Type (J) Temperature Range: -270 °C to 1200 °C (-454 °F to 1999 °F)
- Thermocouple Type (T) Temperature Range: -270 °C to 400 °C (-454 °F to 752 °F)
- Thermocouple Type (E) Temperature Range: -270 °C to 1000 °C (-454 °F to 1832 °F)
Available Options Package Consists Of:
- Peak Hold Memory - Highest reading taken is stored in memory
- Peak Hold Reset - Clears "Peak Hold" memory & allows additional measurements to be taken
- Magnetic Mounting - Adheres to any iron or steel surface
*Max. Temperature for T is 400 °C.
**All Sensors are sold separately.
***All EDL pyrometers come with general “Factory Calibration” and calibration at specified temperature points through our Laboratory is available upon request. EDL’s Metrology will supply any sensor and instrument complete with a report of calibration that is traceable to NIST.
- Built EDL Tough
- 5-year Warranty
- 0.1° Resolution
- Switchable Between °C & °F
- Calibrated Reference Junction: = 0.5 °C
- Operates from 0 °C to 60 °C Ambient (Extended Range Available)
- Easy to Use & Lightweight
- Available in All Major Thermocouple Types
- Fast Response, High Noise Immunity
- Durable Case, Operates with Cover Closed for Added Protection
- Comes with General Factory Calibration; calibration through the lab at specified temperature points available upon request
- Available with Options Package (includes Peak Hold Memory, Peak Hold Memory Reset, & Magnetic Mounting)
- Protective Carrying Case with Custom Foam Insert Available - (Part# CCH-PD)
- 0.1° Resolution!
- Switchable Between °C and °F!
- Durable Housing & Built EDL Tough - Fast Response and High Noise Immunity!!
- Accuracy: 1°: C: (1°: F)
- Resolution: 0.1°: C: (0.1°: F): up: to: 199.9°: C: /: °F
- Display: 127mm: (1/2"): LCD
- Battery: 9: Volt
- Window: Tempered: Glass: or: Lexan®
- Thermocouple: Type: K,: J: T,: or: E: with: Mini-Plug: Terminated: Sensors
- Case: ABS: Nylon: Alloy
- Dimensions: 5.75": x: 3.9": x: 2.2"
- Weight: 448g: (16: oz.)
