Proxicast PocketPORT - Model 2 -Pocket-Sized 3G/4G/LTE USB Cellular Modem Bridge Mini Router

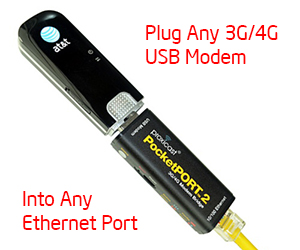

PocketPORT 2 is the World’s Smallest 3G/4G/LTE USB Cellular Modem to Ethernet Bridge/Router
Use a 3G/4G enabled PocketPORT 2 wherever wired Internet service is unavailable, difficult, costly or time-consuming to install. Plug a PocketPORT 2 into the Ethernet port of devices such as IP cameras (web cams) for security applications, programmable logic controllers (PLC) for industrial processes, digital & network video recorders (DVR/NVR) or any other equipment that needs Internet service for remote access. Have field service technicians keep a PocketPORT 2 in their “pocket” for instant 3G/4G Internet access for remote equipment when they are on site visits.

Use a 3G/4G enabled PocketPORT 2 wherever wired Internet service is unavailable, difficult, costly or time-consuming to install. Plug a PocketPORT 2 into the Ethernet port of devices such as IP cameras (web cams) for security applications, programmable logic controllers (PLC) for industrial processes, digital & network video recorders (DVR/NVR) or any other equipment that needs Internet service for remote access. Have field service technicians keep a PocketPORT 2 in their “pocket” for instant 3G/4G Internet access for remote equipment when they are on site visits.

The PocketPORT 2 can also create a fully encrypted "virtual cable" VPN link between two Ethernet devices over the Internet, using standard 3G/4G cellular USB modems. The PocketPORT 2 contains a powerful VPN controller that is capable of establishing transparent peer-to-peer connections from behind firewalls. It acts just like a very long virtual Ethernet cable.  Virtual cable mode can be configured either as point-to-point or point-to-multi-point connections.

The PocketPORT 2 can also create a fully encrypted "virtual cable" VPN link between two Ethernet devices over the Internet, using standard 3G/4G cellular USB modems. The PocketPORT 2 contains a powerful VPN controller that is capable of establishing transparent peer-to-peer connections from behind firewalls. It acts just like a very long virtual Ethernet cable.  Virtual cable mode can be configured either as point-to-point or point-to-multi-point connections.

3 Modes of Operation

1. Bridge Mode - plug a USB modem into any Ethernet port
2. Router Mode - provide an Internet connection to an existing network
3. Virtual Cable - create a secure Ethernet connection between any Internet connected devices

Standard Included Items

• PocketPORT 2 Cellular Modem Bridge
• Auto switching 100-240 VAC to 5 VDC power supply w/US Plugs (global plugs are available separately)
• PocketPORT 2 Quick Start Guide
• Proxicast 1 Year Limited Warranty
• Free Firmware Upgrades
• Free Technical Support

 USB Modems, external antennas, and antenna pigtails sold separately.

Customers desiring a dedicated Virtual Cable Switchboard may purchase a Virtual Cable Switchboard Server Software for Linux license, sold separately

Mechanical

• Dimensions : 62 mm x 23 mm x 15 mm
• 2.4 in x 0.9 in x 0.6 in
• Weight : 25 grams
• Operating Temperature : -10° C ~ 55°
• Operating Humidity : 10% ~ 80% RH
• Storage Temperature : -20° C ~ 60° C
• Storage Humidity : 5% ~ 90% RH

Electrical

• Operating Voltage : 5 VDC (regulated to ±5%)
• Power Consumption :
• 0.75 W without USB modem
• 2.5 W (typical) to 5.0 W depending on USB modem
• Power Jack : microUSB
• Interfaces : 1x USB 2.0 (USB modem)
• 1x RJ45 (10/100 Ethernet)
• Certifications : FCC Class B, CE
• External Power Adapter : 7.5 W (5 VDC @ 1.5A), 100~240 VAC input, interchangeable blades

Software Features

• Operating Modes : IP Pass-Through/Bridge, NAT Router, Virtual Cable (VPN)
• # LAN Devices Supported : 1 (IP Pass-Through/Bridge mode)
• 253 (NAT Router mode)
• Unlimited (Virtual Cable mode)
• User Definable IP Address : Yes
• DHCP Server : Yes, user configurable (NAT Router mode)
• Dynamic DNS Support : Permanent dynamic DNS hostname: serial#.pocketport.net
• User-definable DynDNS.com hostname
• Encryption Algorithm : Twofish, 256 bit keys (Virtual Cable mode)
• Authentication : Pre-shared Key (Virtual Cable mode)
• Connection Behind Firewalls : Yes
• SIM / RUIM Pin Support : Yes
• Device Configuration : Web-browser based (HTTP)
• Firmware Updateable : Yes

USB Modem Features

• USB Modems Supported : Most USB form-factor 3G & 4G GSM, LTE, HSPA+, HSPA, HSUPA, HSDPA, UMTS, GPRS, CDMA, EVDO and 1X modems
• Automatic Configuration of Modem Settings : Yes
• Connection Monitoring : Yes w/ automatic ICMP (ping) keep-alive heartbeat function
• Connection Types : Static IP, Dynamic IP, Custom APN
• Modem Signal Strength Display : Yes, dependent on modem capabilities, including signal strength history graph

Mobile Applications

• Sales & Service Fleets
• Commercial Transportation
• Mobile Router For Cars, Buses & Limos
• Delivery & Courier Vehicles
• Recreational Vehicles
• Boats & Marine Vessels
• Low Altitude Aviation
• Police, Fire & Emergency Vehicles
• Mobile Security & Surveillance
• Public Transit
• Military & Defense Applications

Stationary Applications

• Remote Monitoring, Telemetry, SCADA, AMR
• Remote Control of PLCs and Industrial Controls
• Cash Registers & Credit Card Processing
• Video Surveillance, Webcams & Security
• Construction Site Monitoring & Solar Power
• Tradeshow Internet Access
• Vending, Point-of-Sale (POS) & ATM Machines
• Backup For Wired Internet and Alarm Connections
• Traffic Monitoring & Control
• Digital Signage, Electronic Billboards & Signs
• Homeland Security & Disaster Recovery
