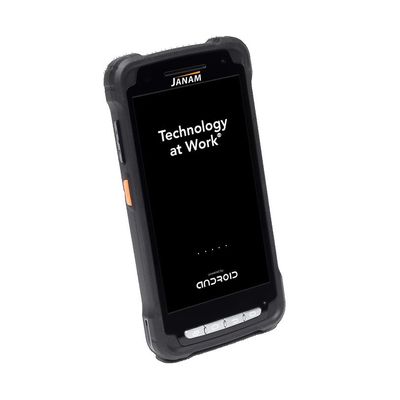

Janam - Model XT3 -Pocket-Sized Powerhouse

Featuring Android 9 or 11 with Google Mobile Services (GMS), Janam’s XT3 has earned Google’s prestigious Android Enterprise Recommended (AER) certification. Select versions of XT3 include specialized hardware and software that support Apple Wallet and Google Pay to easily read all contactless passes, including event tickets, transit cards, loyalty cards and boarding passes. XT3 is the only rugged mobile computer that supports the most advanced NFC protocols for both Apple and Google in the same device.

Weighing less than 10 ounces and featuring smartphone styling, the XT3 is small, light and ergonomically designed for all day, everyday use in transportation, logistics, field service/field sales, retail, hospitality, public safety and other demanding work environments. IP67-rated and tested against MIL-STD-810G standards, the XT3 is incredibly rugged and built to survive repeated drops, extreme temperatures and dusty or wet environments. XT3 is also Class I, Div. 2, Groups A, B, C, D-compliant for safe operation in areas where flammable liquids or gases are handled, processed or used or explosive concentrations of vapors may exist.

TECHNICAL:

• Operating System: Android 9 or 11 with Google Mobile Services (GMS); OS upgradeable; Android Enterprise Recommended
• Processor: 2.2GHz Qualcomm Snapdragon™ octa-core
• Memory: 4GB/64GB (3GB/32GB optional)
• Expansion: User-accessible microSD card slot, 1 micro SIM (WWAN model only) and 2 micro SAM slots
• Power: 2900mAh rechargeable and hot-swappable Li-ion battery (5800mAh optional)

PHYSICAL:

• Dimensions: 6.1” L  x 3.2” W x .8” D / 156mm L  x 82mm W  x 21mm D
• Weight: 9.5oz / 272g including battery
• Display: 5 inch HD (1280x720), IPS, Daylight  readable (500 nits), Wide viewing angle,  Corning Gorilla Glass
• Touch Panel: Multi-touch capacitive touch screen
• ENVIRONMENTAL:
• Operating Temperature: -4º to 140º F / -20º to 60º
• Storage Temperature: -13º to 158º F / -25º to 70º C
• Humidity: Non-condensing, 95%
• Drop: Multiple 5ft / 1.5m drops to concrete on all sides across a wide temperature range
• Water & Dust: IP67
• Electro Static Discharge (ESD): +/- 15kV air; +/- 8kV contact

INTERFACE FEATURES:

• Audio: 3.5mm headset jack; speaker; dual-microphone with noise cancellation  and push-to-talk (PTT) support
• Alerts: Vibration; LED indicators
• Connectors: USB-C; Pogo Pin industrial connector
• LED Indicators: Dual-color
• Motion Sensor: Accelerometer; Light Sensor; Proximity Sensor; Gyroscope; Digital Compass
• External Buttons: 9 programmable keys

DATA CAPTURE:

• Imager: Honeywell N6703 1D/2D imager
• Camera: 13MP color rear-facing autofocus camera  with user-controllable LED flash and 8MP  front-facing camera
• RFID/NFC: Reads NFC Forum Tag 1 to 5, ISO14443  Type A, ISO14443 Type B, ISO15693,   MIFARE® 1k/4k/Plus/UltraLight/ DESFire,  Sony FeliCa on the 13.56 MHz range,   Optional support for Apple Value Added  Services (VAS) and Enhanced Contactless  Polling (ECP) and Google Smart Tap
• WIRELESS

COMMUNICATION:

• WWAN (optional): EDGE/GPRS/GSM: 900/1800/850/1900 WCDMA: B1/2/4/5/6/8/19  LTE FDD: B1/2/3/4/5/7/8/12/13/14/17/19/25/26/20/28  LTE TDD: B38/B39/B40/41
•  LAN: 802.11a/b/g/n/ac/d/h/i/k/r/v fast roaming,  2x2 MU-MIMO technology
• Security: IEEE 802.11n; WEP / WPA / WPA2 / WEP, RC4  Algorithm; TKIP, RC4 Algorith; AES, Rijndael  Algorithm; PEAP/MS-CHAPv2, EAP-TLS; EAP-  TTLS; PEAP-GTC; LEAP
• WPAN: Bluetooth 5.0 (BLE)
• GPS: GPS with support for GLONASS, Galileo and Beidou
• ACCESSORIES (sold separately): Single-Slot Ethernet Cradle Kit, Single-Slot USB/Charging Cradle Kit, Four-Slot Charging Cradle Kit
• Extended Battery, Four-Slot Battery Charging Kit
• Handstrap, Trigger Handle, Vehicle Cradle

SAFETY/REGULATORY:

• Safety: IEC 60950-1, EMC, RF, SAR, LED, Laser
• Radio: FCC, IC, ICEC, CE
• Environment: UL Listing (US and Canada) Class I Div 2, Groups A, B, C, D; RoHS; China RoHS
• Specifications Subject to Change.
