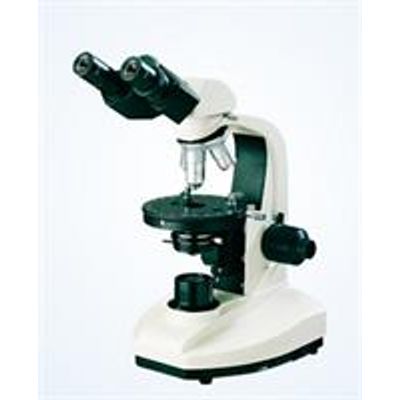

Micro Shot - Model MP20 -Polarizing Microscopes
MP20 Polarizing Microscope is a kind of essential instrument for studying and identifying the materials with double refraction characteristics, by using polarizing feature. This microscope is widely used in many fields, such as observation of crystalline inclusions, muscle tissue, nerve tissue, plant fiber and other structural details of the teeth, bone, and living cells, as well as analysis of drug composition and properties. Furthermore, in the field of inorganic chemistry, the fine structure of crystallization conditions of various kinds of salts which cannot be seen in natural light can be observation through polarizing microscope.
Most popular related searches
- Equipped with wide field eyepieces and achromatic objectives, wide and clear field of view.
- Coaxial coarse and fine focusing system, coarse movement tension can be adjusted, with adjustment limit stopper,minimum adjustment gradations: 2μm.
- Transmitted illumination of 6V20W halogen lamp with brightness adjustable.
- Eyepiece Wide field WF10X(Φ18mm)
- Objective Achromatic objective 4X/0.10
- Achromatic objective 10X/0.25
- Achromatic objective 40X/0.65 (Spring)
- Achromatic objective 100X/1.25(Spring, oil)
- Observation tube Trinocular, inclined 30°
- Analyzer Sliding
- Focus system Coaxial coarse/fine focus system, with tension adjustable and limit stopper,minimum graduation in fine movement is 2μm
- Nosepiece Quadruple (Backward ball bearing inner locating)
- Stage Rotatable stage (Diameter:Φ120mm)
- Abbe condenser NA.1.25 Rack & pinion vertical adjustable
- Filter Blue filter
- Frosted glass
- Polarizer 360° rotatable
- Condenser For illumination with halogen lamp and field diaphragm
- Illumination unit 6V 20w, halogen bulb, brightness adjustable
