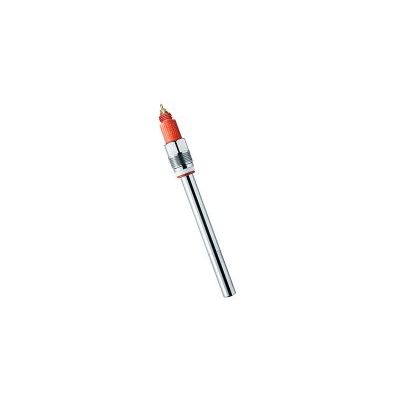

InPro - Model 6850i -Polarographic Oxygen Sensor

Thanks to the integrated ISM technology with Plug and Measure capability makes installation much easier and offers new possibilities for maintenance planning thanks automated self diagnosis and asset management. Together with the iSense always one step ahead.

Specifications - InPro 6850i polarographic oxygen sensor

Segment /Application: Wide application range in Pharmaceutical, Food and
Beverages and chemical applications
Accuracy: +/-1 % +6 ppb
Sterilizable: yes
Autoclavable: yes
Material in contact with medium: stainless steel (AISI 316L) with 3.1B certificates
Response time at 25 °C (air --> N2): 90 sec.
Mechanical pressure resistance: max. 12 bar (174 psi) absolute
Detection Range: 6 ppb to saturation
ISM: yes
ATEX Certification: II 1/2GD Ex ia IIC T6/T5/T4/T3, IP6X T 69 °C / T 81 °C / T 109 °C / T 161 °C, SNCH 01 ATEX 3277X
FM approval: IS / I, II, III /1/ ABCDEFG / T6 Ta=60 °C - 53 800 002; Entity
Description: Digital interface (ISM) with dynamic lifetime indicator and plug and measure

As with all oxygen sensors from METTLER TOLEDO also the ISM sensors fulfill highest requirements for hygienic design in compliance with  EHEDG and 3-A standards. The proven maintenance concept with membrane body and replaceable inner body is continued with all i-type sensors.

Features and Benefits

High measurement stability

The new 3-electrode principle with its separated platinum anode for higher signal stability

Enhanced diagnostics

Permanent sensor monitoring with ISM technology reduces the risk sensor failures

Predictive maintenance

The enhanced diagnostics allows for better maintenance planning "as few as possible, as often as necessary"

High process safety

FDA compliant materials of construction and easy-to-clean high-polished surface (N5 grade) to satisfy increasing regulatory requirements.

Reduced service time

Thanks to the easy-to-replace membrane body and quick-disconnect interior body.

Long sensor lifetime

Durable and rugged sensor design for increased resistance to harsh environments

Installation in hazardous zones

ATEX certificate: II 1/2GD Ex ia IIC T6/T5/T4/T3, IP6X T 69 °C / T 81 °C / T 109 °C / T 161 °C, SNCH 01 ATEX 3277X; FM approval: IS / I, II, III /1/ ABCDEFG / T6 Ta= 60 °C - 53 800 002; Entity.
