PoliGate Deployable - Radiation Portal Monitor

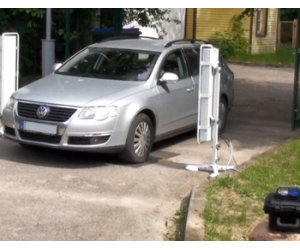

The PoliGate™ Deployable RPM is a stationary system comprising independent units connected with the cables and designed for fast deployment in emergencies. It is suitable for indoor and outdoor use.

The RPM is transported and stored in protective transport cases. It can be easily moved to the needed location and deployed there in just 5 minutes by two people without any specialized tools.

Once switched on, the RPM provides continuous 24-hour personnel-free operation. In case of power failure, the power supply of the RPM automatically switches to power from the internal battery and is operable for at least 8 hours. The internal battery is charged automatically when the RPM is connected to a power supply and switched on.

The constituent parts of the RPM are the Control Block and Detection Blocks, accompanied by a set of mounting and connecting elements, and the laptop with the designated user software for the advanced operation of the RPM. The real-time measurements are displayed in an easily readable format, ensuring a quick and accurate assessment of the radiation environment. This data transfer capability ensures that all measurements are logged and stored for comprehensive record-keeping and future reference.

• Detector: 2 gamma detectors, PVT scintilliator
• Energy range: 0.03 – 3 MeV
• Type of registered radiation: gamma
• Ingress protection: IP67
• Weight: 150 (3 cases x 50 kg)
• Operating temperature: - 30 up to +50 °C
• Atmospheric pressure: from 88 up to 106.7 kP
• Dimensions
• Control Block : 247x298x250 mm
• Gamma Detection block : 340x1160x160 mm
• Humidity: up to 100 %
• Configuration: one or two pillar configuration
• Maximum speed, km/h
• control zone 1.5 x 2 m: 5 km/h
• control zone 3 x 2 m: 5 km/h
• control zone 6 x 2 m 8 km/h
• Minimum detectable amounts of radioactive materials, control zone 1.5 x 2 m
• 241Am, MBq (µCi) : 0.2 (5,5)
• 137Cs, MBq (µCi) : 0.034 (0,9)
• 60Co, MBq (µCi) : 0.018 (0,5)
• 235U, g : 14
• 238U, g : 204
• 239Pu, g : 0.4
• Minimum detectable amounts of radioactive materials, control zone 3 x 2 m
• 241Am, MBq (µCi) : 0.61 (16,5)
• 137Cs, MBq (µCi) : 0.1 (2,7)
• 60Co, MBq (µCi) : 0.55 (1,5)
• 235U, g : 40
• 238U, g : 610
• 239Pu, g : 1.1
• Minimum detectable amounts of radioactive materials, control zone 6 x 2 m
• 241Am, MBq (µCi) : 2.3 (62)
• 137Cs, MBq (µCi) : 0.38 (10,3)
• 60Co, MBq (µCi) : 0.21 (5,7)
• 235U, g : 150
• 238U, g : 2300
• 239Pu, g : 4.2
• Powerexternal : 90-260V AC 50/60Hz
• internal battery : (12V) with minimum 8 hours lifetime after external power failure
