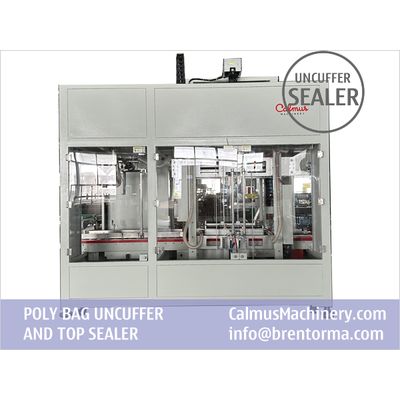

It is an ideal and important machine for bag in box packaging. This poly bag uncuffer (decuffer) and top sealer is designed for heat-sealing bags in boxes after they are loaded or filled with products. The sealing machine uncuffs the bag off the carton top flaps, stretches the bag top, vacuumizes the bag (only a light vacuum to prevent balloon forming), seals the bag top and then flatten it in the carton. This bag decuffer and top sealer reduces labor and material costs, is simple to operate and easy to adjust. High efficiency and labor saving.
Specifications:
Uncuffing and sealing capacity: 3-5 cartons/min
Film width: 460-840mm
Applicable carton dims: L250-550*W200-400*H150-400mm, also can be customized
Power supply: single or 3 phase, 7 kW
Compressed air: 6-8 bar
Air consumption: 250 NL/min
Machine dims: L2,800*W1,800*H2,800mmmm (for reference only)
We also offer a poly bag inserter designed to line cartons with poly bags by one each.
