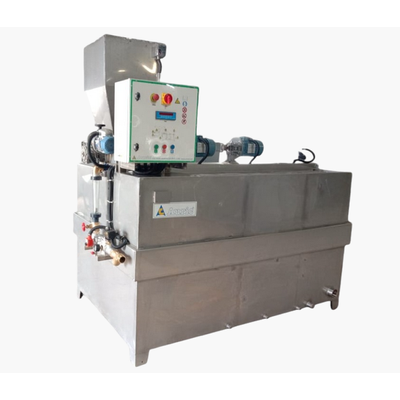

Auric - Poly Dilution Unit
Polypreparation and Dosing unit have been prepared for Application where the Polyelectrolyte has to be fed on a continuous basis with accurate control of dilution and ageing. This is a completely automatic unit.
This is a completely automatic unit for powder polyelectrolyte. All the metallic parts in AISI304 / 316 stainless steel. Polyelectrolyte from feed hopper passes through a lump breaker and via screw conveyor microdoser to a prediction unit where it is mixed with a controlled volume of water and enters a dilution tank equipped with a three bladed mechanical mixer. Then it passes through a dispersion tank which is also mechanically mixed and finally to an ageing and storage tank. The polyelectrolyte solution withdrawn from this tank by a dosing pump (optional).
When the contents in the ageing/storage tanks falls to a preset level, the water and polyelectrolyte feed are automatically restarted and are stopped when the tank is full. Sensors are provided for automatic operation and dosing pump protection.
- Precise control of the polydilution process.
- Reduction in wastage of Polyelectrolyte and water
- Ease and comfortable in operation
- Minimal operator interference
For use in Sludge thickening and dewatering in Municipal Waste Water Treatment and Effluent Treatment plants.
