Integra Enclosures, Ltd.
Impact Line - Model P4043 -Polycarbonate Enclosure

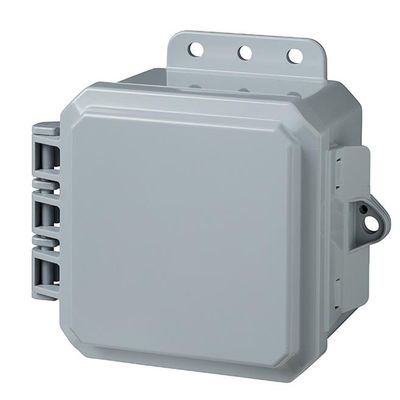

4″ x 4″ x 3″ high impact polycarbonate enclosure with hinged cover, gray. Integrated locking latch and mounting flanges provide a 100% metal-free enclosure with no hardware required. Protection Rating: UL/cUL NEMA TYPE 6P IP68.
Most popular related searches
- Impact line, Polycarbonate enclosures
- UL/cUL NEMA TYPE 6P IP68
- Integrated Mounting Flange
- Integrated Locking Latch
- Standard Hinge
- Opaque cover
- Enclosure size: 4x4x3
Mechanical and Thermal
- Instrumented Dart Impact @ 73°F, 565 in-lb.
- Falling Ball Impact @ 73° 900 in/lb. Test Spec. UL-746
- Deflection Temperature @264 psi, 270 Deg. F, Test Spec. ASTM D648
- Modulus of Elasticity 340 ksi, Test Spec. ASTM D790
- Temperature Range, -40 to 265 Deg. F
Flammable/UV Ratings
- Flame Rating Ð UL, 5VA. Test Spec. UL-94
- Outdoor UV Exposure, F1. Test Spec UL
3rd Party Approvals
- UL-50/c-UL Listed (file #E207562)
