Brentwood Industries, Inc.

- Model NCS-720-S - Sludge Collector Chain

From

0

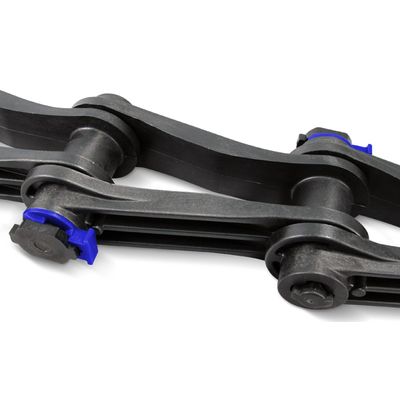

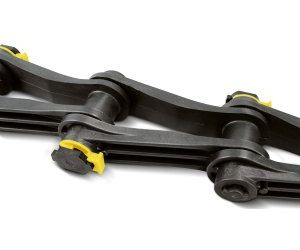

Brentwood's Polychem NCS-720-S Collector Chain is among the strongest 720-series chains on the market. Precision molded from durable, glass-reinforced polyester, this lightweight chain withstands high sludge loadings in corrosive environments. Our collector chain can also be protected with barrel wrap for high grit or highly caustic conditions. By reducing barrel wear, the chain lasts longer and performs better.

  • Integrally molded chain links eliminate wear
  • Resistant to UV and chemical damage
  • Standard 9.5’ lengths for longitudinal collectors
  • Standard 4.5’ lengths for cross collectors

  • Series: NCS-720-S
  • Pitch inches: 6.1
  • Average Weight Per Ft lbs: 1.5
  • Working Load lbs-f: 3100
  • Pin Diameter inches: 0.866
  • Link Material: Glass Reinforced Polyester
  • Pin Material: Glass Reinforced Nylon
  • Clip Material: ACETAL

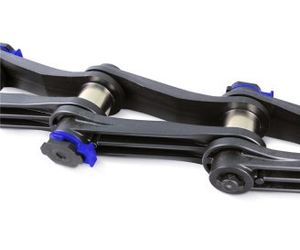

Barrel Wrap


The barrel wrap collector chain option increases chain life by reducing barrel wear. It is made of durable 301 SS for high grit conditions and is available in 316 SS for highly caustic conditions.

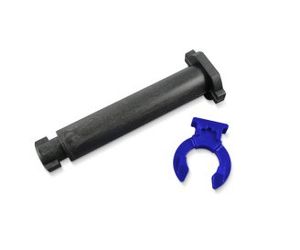

Connecting Pin & Retaining Clip

The twist-snap pin and clip design is easy to install without special tools, and locking T-heads prevent pin rotation. The clip’s contrasting color also simplifies field inspection.
