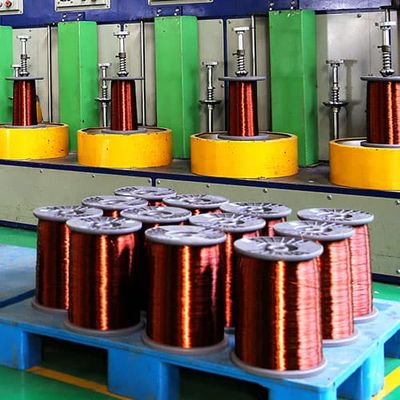

LP-Industry - Model 0.25mm-6mm -Polyester Overcoated With Polyamide or Polyester Imide Enameled Round Copper Wire

• Type: Polyester overcoated with polyamide or polyester imide enameled round copper wire
• Dimesion: 0.25mm-6mm
• Application: used in winding and wiring of transformer, motor, generator, etc.

Polyester overcoated with polyamide or polyester imide enameled round copper wire(QZY-2/180 0.250mm Enameled Copper Wire): class 180

Conductor and Insulating Film

Conductor

The conductor shall be transformed into annealed copper wire.

Insulating Film

Baking Polyester overcoated with polyamide or polyester imide insulating varnish shall make the insulating film of the wire Class 180 on the conductor uniformly and perfectly

Characteristics

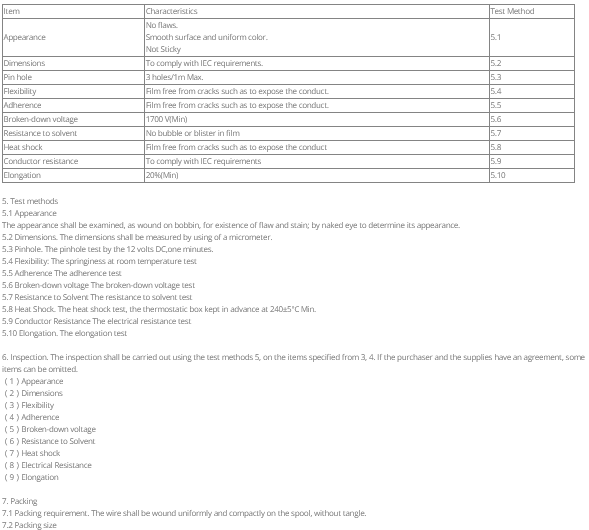

The characteristics of wire shall comply with table 2, when tested by 5.0.
