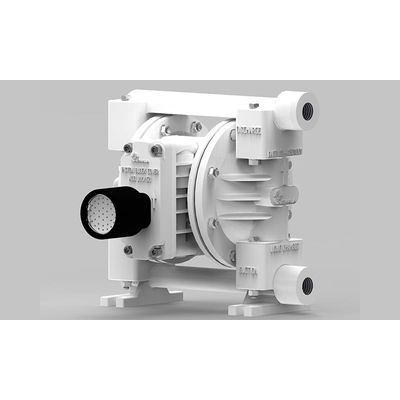

Nirmala - Model 150 -Polypropylene AODD Pump
Nirmala Pumps and equipments manufacture high-quality polypropylene aodd pumps having parts constructed from polypropylene. PP AODD Pumps are used where the medium to be transferred is highly corrosive. These pumps are designed for highly acidic applications. PP AODD pumps are suitable in hazardous areas because it uses compressed air as it’s power source instead of electricity. For the same reason, an AODD pump can be safely submerged – as long as the air vent is above the liquid level.
Most popular related searches
air-operated diaphragm pump
materials performance monitoring
air intake
hazardous area
compressed air
air diaphragm pump
diaphragm pump
material testing
pump system
diaphragm air pump
- Pump Model: 150 PP AOD
- APPLICATIONS: Acids , Sludge, Resins, Ink Industry
- Make: “NIRMALA” Make
- QUANTITY: 1
- Air Pressure: 8.6 bar
- Max. Capacity: 35 LPM
- Air Inlet: ¼” (6.35mm)
- Liquid Inlet / Outlet: ½” (12.70 mm)
- Type: Air Operated Diaphragm Pump
- Suction Size: ½”
- Discharge Size (mm): ½”
- Connections: BSP Threaded/ Flange ASA-150 standard
- Diaphragm: Teflon Diaphragm
- NRV Ball: Teflon Ball
