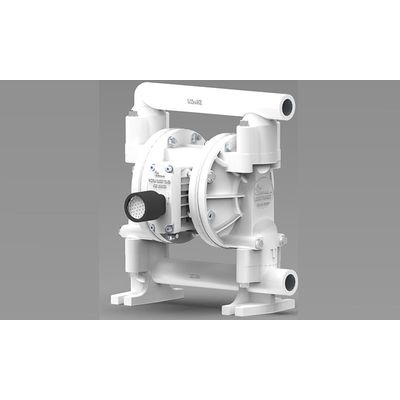

Nirmala - Model 300 -Polypropylene AODD Pump
Nirmala Pumps and equipments manufacture high-quality polypropylene aodd pumps having parts constructed from polypropylene. PP AODD Pumps are used where the medium to be transferred is highly corrosive. These pumps are designed for highly acidic applications. PP AODD pumps are suitable in hazardous areas because it uses compressed air as it’s power source instead of electricity. For the same reason, an AODD pump can be safely submerged – as long as the air vent is above the liquid level.
Most popular related searches
air-operated diaphragm pump
materials performance monitoring
air diaphragm pump
diaphragm air pump
air intake
hazardous area
compressed air
diaphragm pump
air pump
material testing
- Pump Model : 300 PP AOD
- Make: “NIRMALA” Make
- Type: Air Operated Diaphragm Pump
- Air Pressure: 8-8.6 bar
- Max. Capacity: 105 LPM
- APPLICATIONS: Acids , Barrel Loading – Unloading Application
- Liquid Inlet / Outlet: 1”
- Air Inlet: 3/8”
- QUANTITY: 1
- Suction Size : 1”
- Discharge Size (mm): 1”
- Connections: BSP Threaded/ Flange ASA-150 standard
- Diaphragm: PTFE Diaphragm
- NRV Ball: Teflon Ball
- Pump Weight: 7.2 Kg
