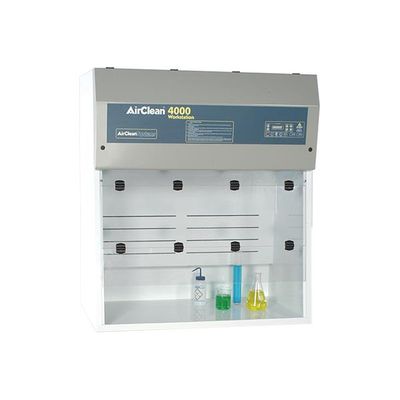

AirClean - Polypropylene Ductless Fume Hood - Folding Sash

• AirSafe® automatic safety controller
• No ductwork required
• No installation required - plugs directly into a standard 110V or 220V electrical outlet
• AirZone™ baffling establishes a proper horizontal airflow pattern and directs toxins away from the operator in a predictable pattern, eliminating "dead spots" within the hood
• Polypropylene construction for chemical resistance. The result: NO RUST
• Wide range of bonded activated carbon and HEPA filters for containment of virtually any toxic vapor, fume, gas, or particulate
• Integral vapor-proof fluorescent lighting
• Large capacity filtration bed to handle a wide variety of applications
• Gas phase bonded carbon filtration
• Integral base with deep spill lip
• Lab event timer

• AirZone^™ baffling to prevent fume hood roll and provide superior containment of gases and vapors
• Brushless, sparkless blower is post-filter
• Deep base effectively contains accidental spills
• Electronic gas detection for real-time gas phase filter monitoring
• Filter and electronics are located above the workspace, eliminating the chance of a chemical spill entering these sensitive areas
• Filter safety lockout to ensure correct filter replacement
• Low airflow alarm warns the user both visually and audibly
• Real time monitoring of installed filtration bed
• Tested to UL 61010-1 and CSA C22.2 No. 61010-1

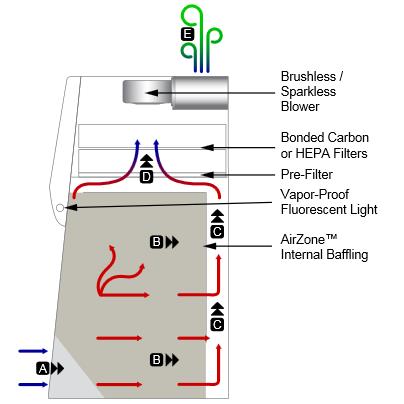

A Room air flows away from the operator and enters the enclosure in a horizontal pattern.
B Room air mixes with both lighter and heavier gases.
C Mixed air is drawn into the AirZone™ baffling.
D Contaminated air is directed through the filtration bed.
E Clean air is recirculated into the room.
