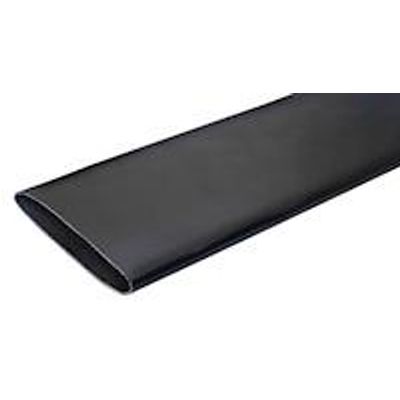

Kuriyama - Model OFTR-400x660, OFTR Series -Polyurethane Discharge Hose

General Applications

• Frac solutions
• Drinking water transport
• Emergency water supply
• Liquid and powder food transfer
• Manure transfer
• Mining
• Potable water to transfer ships/boats
• Sewer and water treatment

Construction: Black polyurethane (TPU) hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.

Service Temperature Range

• Service Temperature [Min]: -50 ºC-58 ºF
• Service Temperature [Max]: 65 ºC150 ºF
• Intermittent Service Temperature: Up to 79 ºCUp to 175 ºF

• Factory Tested- 100% Hydraulic tested with factory certificate.
• Premium Polyurethane (TPU) Material- Exhibits exceptional resistance to abrasion, allowing for use in applications where severe abrasion is a factor and providing longer service life versus rubber or PVC hoses. Also, exhibits exceptional resistance to oils and petroleum based products.
• Unique Woven Construction- Specially designed weave pattern provides resistance to kinking, stretching and twisting. Superior snaking resistance!
• Longer Lengths- Manufactured in special 660 foot lengths to reduce possible leaking points.
• Smooth TPU Tube- Provides low friction loss.
• Compact Design- Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
• Superior UV and Ozone Resistance- For extreme UV and ozone conditions.

Nominal Specifications

• Size: 4 in101.6 mm
• Hose ID: 4.008 in101.8 mm
• Wall Thickness: 0.140 in
• Working Pressure at 68ºF: 320 psi
• Burst Pressure at 68ºF: 800 psi
• Coil Length: 660 ft
• Tensile Strength: 26450 lb
• Weight: 0.90 lbs/ft

Specifications

• Brand: Kuriyama
• Type: Polyurethane Discharge Hose
• Series: OFTR
• Material: Polyurethane
• Color: Black
• Reinforcement Material: High Tenacity Polyester Reinforcement
• Note: NSF/ANSI/Can Standard 61 - Hose can be specially manufactured and certified on request. Contact Kuriyama customer service for details.

This is a non-stock product. Minimum order requirements may apply. Contact Kuriyama customer service for details.
