Pontoon Vertical Profiler

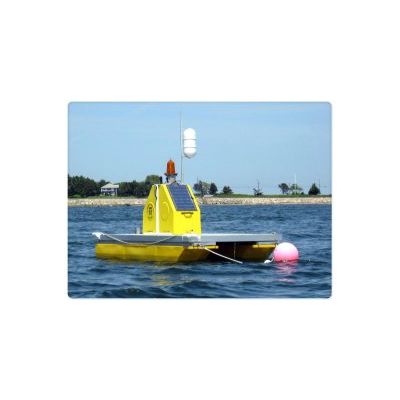

Automated water quality profiler for lakes, reservoirs and coastal areas. Featuring a submersible, watertight enclosure and a rugged non-corrosive mechanical winch and drive mechanism, the 6951 provides fully-automated data collection from a pontoon float.
Most popular related searches
water quality profiling
depth profiler
water quality
depth sounder
vertical profiling
water profiler
water profiling
automatic watering system
transmission data
meteorology data
The 6951 offers user-programmable sample intervals, redundant error recovery logic that detects unexpected activity and recovers automatically, and is compatible will all YSI 6-Series sondes equipped with depth.
Add several options to the 6951 including:
- Depth sounder for automatic compensation for varying water levels due to tides and reservoir levels
- Meteorological package
- Wireless data transmission
- Profile Wizard software for easy set-up and deployment.
Features:
- Submersible enclosure for electronics
- Compatible with all 6-series sondes equipped with depth
- User-selectable sample intervals
- Minimum Profile Depth: 1 meter
- Profile Depth: 0-50 m standard; 0-100 m optional
- Depth Profile Setpoint Accuracy: ±0.1 m
- Maximum Profile Frequency: ~50% of duty cycle
- Standard Payload: YSI 6-Series Sonde with depth
- Cable Options: 50 m or 100 m
- Profile Direction: Up or down and parks at any depth
- Reference Point: Uses top and bottom reference points for software controlled positioning
