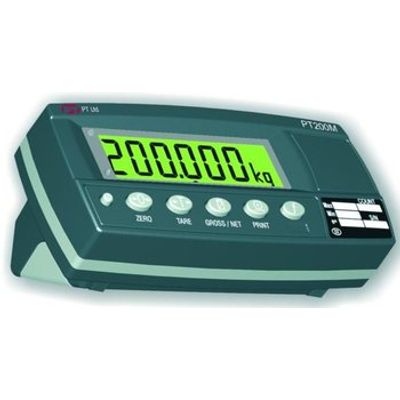

PT - Model PT200M/P -Popular Standard Weighing Indicator Series
FromPT Limited
The PT200M and PT200P Series digital weight indicators offer high levels of performance and functionality by combining all the very latest advances in weighing technology into one compact package. A powerful 24 bit Sigma-Delta A/D converter ensures fast and accurate weight readings are attained. The four layer, surface mount PCB offers low power consumption and extreme durability under harsh operating conditions. Comprehensive setup and calibration functions are displayed in plain text for clear understanding by the installer. The software auto-detects the type of power input (plug-pack or internal batteries) and alters the power saving functions accordingly.
Most popular related searches
- Totalising
- High/low level control
- Clock & calendar memory
- lb/kg switching
- Live weight
- Peak Hold
- Counting
- 30,000 displayed divisions
- 12~24V DC input with power on/off
- Key 20mm LCD with LED backlighting
- Sealed membrane keypad (PT200P)
- Silicon keypad (PT200R/M)
- Function key (PT200M/P)
- RS-232 serial output (PT200M/P)
- 2 Isolated transistor outputs (PT200M/P)
- Panel mount, desk stand, pole/wall bracket
- LED backlighting
- Easy setup, no soldering
- 4 layer surface mount PCB
- Built-in EMC protection
- CE approved
- Resolution:
- Up to 30,000 Divisions,
- Minimum of 0.25µV/Division,
- 20 Updates/Second
- (Trade 4000 Divns. at 0.8µ/Division)
- Zero Cancellation: ±2mV/V
- Span Adjustment: 0.1mV/V - 3.0mV/V Full Scale
- Stability/Drift:
- Zero < 0.1µV/°C (+8ppm Deadload
- Max), Span< 8ppm/°C,
- Linearity< 20ppm, Noise< 0.2µVp-p
- Excitation:
- 5V for up to 4 x 350O or 8 x 700O
- Load Cells (4-wire or 6-wire
- plus shield), Max Total Load Cell
- Resistance 1.000O
- A/D Type:
- 24bit Sigma Delta
- with 8,388,608 Internal Counts
- A/D Conversion Rate: 20Hz with FIR Filtering . 80dB
- Operating Environment:
- -10 ~ 50°C Ambient Temperature,
- > 90% Non-Condensing Humidity,
- -20 ~ 50°C Ambient Storage
- PT200M: IP55 when panel mounted
- PT200P: IP65
- Setup & Calibration:
- Full Digital
- Visual Prompting in Plain Messages
- Digital Filter:
- Sliding Window
- Average 0.1 ~ 4 seconds
- Zero Range: Adjustable 2 ~ 20% Full Capacity
- Display:
- LED Backlit LCD, Six 20mm High
- Digits With Units & Annunciators
- Standard Power Input:
- 12 ~ 24V DC (2.5 VA max),
- ON/OFF Key With Memory Feature
- AC Plug Pack:
- 110/240V AC 50/60HZ Input
- 12V DC 0.5A Output (optional)
- Battery:
- 4 x A4 (Alkaline/Rechargeable NiMH,
- NiCad, etc. (optionsal)
- opto-LINK Data Coupling:
- Infra-red Connector
- Optional opto-LINK
- (PC RS-232 Port Cable)
- Case Materials:
- PT200M: ABS, Silicon
- Rubber, Nylon, Acrylic
- (no halogen used)
- PT200M Extra Features: (see below)
- Linearity Correction: 5 point
- RS-232 Automatic Transmit:
- For Network or Printer Outputs
- Transmission Rate: 2400, 4800
- or 9600 Baud
- Assignable Function Key:
- Unit Switching, Counting, Manual Hold
- Peak Hold, Live Weight and Totalising
- 2 Isolated Transistor Drive Outputs: 300mA Total At 50V DC
- Battery Backed Clock Calendar: Battery Life 10 years Minimum
- PT200P Extra Features:
- Equivalent to PT200M with IP65
- Stainless Steel Housing
- Packing Weights:
- Basic Indicator
- PT200M:0.34kg
- PT200P: 2.4kg
