Jintai - Porous Metal Tubes

• High rigidity: most types of metals through sintering offer a strong structure
• Anti-corrosion: especially in acid or alkali solutions
• Large dirt holding capacity: can be used with a longer lifetime
• High filtration precision: high particles removal efficiency of 0.1-200 micron
• High-temperature resistance: maximum 550? at the operating environment
• Easy to clean: with several cleaning methods, especially suit for backwashing
• Customization: Details/options like length, diameter, thickness, materials can be altered
• The size is accurate: The minimum tolerance can reach 0.1mm
• Rich specifications and models
• Can make special-shaped parts
• Lower surface roughness

• Material selection ;
• Titanium
• Stainless steel: 316L, 304L, 310S, 321, 904L
• Hastelloy C22 C276 X
• Inconel 600
• Monel 400
• Nickel
• Other materials required by the customer
• Filtration Grade ;
• 0.1um 0.3um 0.5um 1um 3um 5um 10um 15um 20um 30um 50um 80um 100um
• Other grade required by the customer
• Data & Specifications ;
• OD: Min. 4mmID: Min. 2.5mm
• Length: Min. 2mm
• Thickness: Min. 1mm, Max. 6mm
• Other specifications and sizes required by customers

304L stainless-steel was used for equipment and also mechanical element, which shows superb properties especially corrosion resistance and also formability. The applications covered food industry, chemical engineering and atomic energy. By the use of climatic corrosion resistance and heat resistance.

316L stainless steel was used in sever problems such as seawater, chemistry, paper making, oxalic acid, plant food and also various other problems.

Such as: Muffler, Current limiter, Flame arrestor, Buffer, Various filtration and also aeration, etc.

Suitable environment: Nitric acid, sulphuric acid (concentration about 96%), acetic acid, boric acid, nitrous acid, oxalic acid, alkali, hydrogen sulfide, acetylene, heavy steam, seawater, liquated natrium, liquid nitrogen, fluid hydrogen, liquid helium, phosphoric acid, hydrochloric acid (focus regarding 5%), air, hydrogen.

With high porosity, remarkable gas permeability, as well as low differential pressure, Jintai sintered tubes are available for different application areas, such as fluid & gas filtration of petroleum, polyester filtration, chemical fiber filtration, and also water filtration.

Your Irreplaceable Sintered Metal Tube Manufacturer in China - Jintai

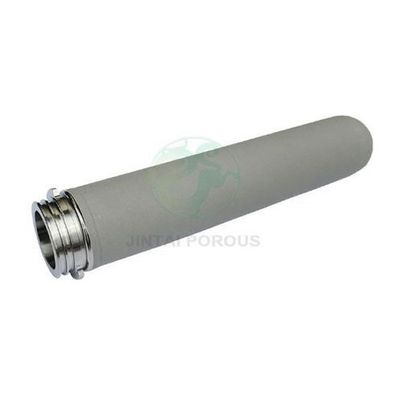

Jintai sintered metal tube is a type of filter elements that contain multi-layer cord meshes or metal powder by sintering. Jintai mainlymanufactures sintered stainless-steel tube, porous metal tube, sintered bronze tube, and so on.

Jintai sintered metal tube pays more attention to production trouble from precision, like an easily neglected bit chipping problem of the edge. Fortunately, our knowledgeable production workers resolved it with our innovative vacuum cleaner sintering equipment.

Additionally, every Jintai sintered metal tube is checked purely with bubble point test according to ISO 4003 as well as air permeability test according to ISO 4022, to make sure premium quality and also please your unique precision demand.

Jintai Sintered Stainless Steel Tube

Jintai sintered stainless steel metal tubeis made from numerous multi-layer stainless-steel cable fits together, or sintered by stainless-steel powder. It does exceptional deterioration resistance, high mechanical strength, is a cost-efficient option contrasted to nickel sintered tube.

Jintai Sintered Porous Metal Tube

Jintai sintered porous metal tube can withstand high operating stress of 3000psi with noticeable mechanical toughness as well as rigidity. Besides, it features uniform pore distribution along with high permeability, supplying a smooth and also fast flow for your filtration.
