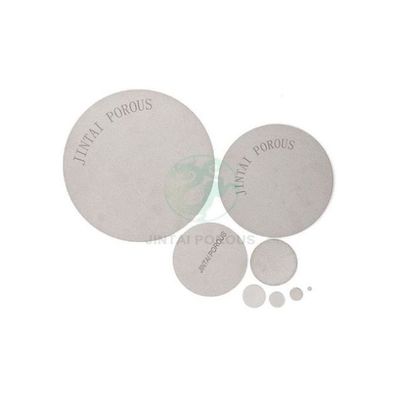

Jintai - Porous Sintered Metal Stainless Steel Discs
The porous metal discs of Jintai Company can be customized in various specifications according to customer requirements, and the parameters such as diameter, thickness, material and grade can be changed to meet customer process requirements. In addition, the discs can be encapsulated in various metal or non-metal parts for use.
Most popular related searches
- High rigidity and stability for long service life.
- Excellent resistance to corrosion, acids, alkalis and abrasion.
- High heat resistance, can be used in the temperature range of -200°C to 600°C
- Multiple filtration grades available with high filtration accuracy for different applications.
- Good dirt holding capacity.
- Easy to clean and reusable, thus reducing downtime.
- Sintered metal filter discs can be formed into round, square, rectangular, oval, ring shapes, etc., depending on different needs. Single or multi-layer options are available.
- Material selection ;
- Titanium
- Stainless steel:316L, 304L, 310S, 321, 904L
- Hastelloy C22 C276 X
- Inconel 600
- Monel 400
- Nickel
- Other materials required by the customer
- Filtration Grade ;
- 0.1um 0.3um 0.5um 1um 3um 5um 10um 15um 20um 30um 50um 80um 100um
- Other grade required by the customer
- Data & Specifications ;
- Diameter: Min. 2mm, Max. 450mm
- Thickness: Min. 1mm, Max. 20mm
- Other specifications and sizes required by customers
