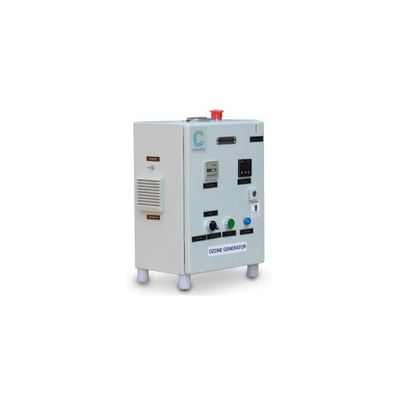

Chemtronics - Model PAO/LC - 250/ 500 -Portable Air Ozonator for Odor Control and Disinfection

• Commercial / Industrial grade
• Continuous mode/ One time / Continuous timer
• Plug and play
• Extension flexible tubing
• Light weight/ Portable
• Generated from ambient air
• Built in air pump

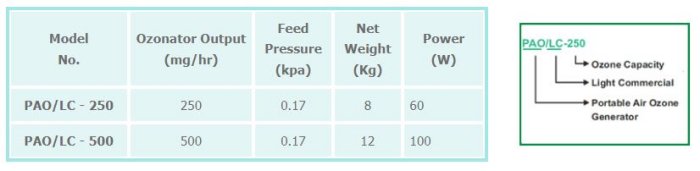

• Model No.: PAO/LC – 250/ 500
• Brand: Chemtronics® (Made in India)
• Make: CHEMOZONE TM
• Feed Gas: Ambient dry, dust & moisture free air
• Ozone Concentration: 90.0 - 120.0 mg/m3
• MOC of Ozone Cell: SS 316 / Ceramic
• Cell Cooling: Forced Air Cooled - Internally & Externally
• Heat Dissipation: Radiator Fins Design - Internal & External
• Discharge: Corona Discharge @ 0.3w/sq cm
• Power Amplifier: MOSFET
• Start: Soft start
• EHT: Ferrite Based Air cooled
• Dielectric: Precision Ceramic
• Enclosure - MOC: Carbon Steel
• Enclosure -Protection: IP - 54
• Enclosure -Finish: RAL-7035, structure powder coating
• Indicator: Power + Standby + Ozone ON
• Service Indicator: Non Resettable Hour meter
• Operating Temperature: 15 °C - 40°C

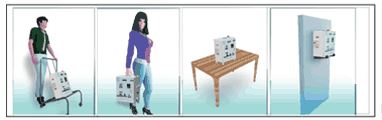

• Mounting / Installation: Portable / Trolley mounted / Wall / Floor
• Line Voltage: 110/220 V ac; 50/60 Hz; I Phase
• Standard Accessories: Maine Cord – 3 meters, flexible anti oxidant tubing’s – 3 meters
• Optional Accessories: Timer, SS 304 enclosure, ozone leakage sensor cum controller

*The above specifications are subjected to change without prior notice for Product/Performance enhancement
* Above specifications are at 20*C. For different working condition, there may be difference of 10% to 20% of ozone concentration

• Air disinfection
• Air Odor Control
• VOC reduction
• Reduce Sick Building Syndromes
• Enhance Indoor Air Quality
• Smoking lounges
• Fire/Burning odor reduction
• Sewage & Garbage odor reduction
• OT & ICU disinfection
• Air Fumigation
• Clean room applications
• Production, Packing & Storages
• Cold rooms | cold storages.

• Bakery & Confectionaries
• Dairy
• Food Processing
• Wineries
• Horticulture
• Process | Packing
• Storage | Cold Storages
• R & D Labs
• Pharmaceutical
• Medical & Health Care
• Hotels | Resorts | Hospitality
• Smoking Lounges
• House Keeping | Tank Cleaning
• Bar | Pubs | Restaurants | Clubs
• Car & Bus coaches Cleaning
• AHU Duct Cleaning & Disinfecting
• Godown | Store Rooms
• Clean Rooms
• Corporate Offices
• Schools | Collages
• Shopping Malls
• Theaters
• Gym | Sports Clubs
• Mosque | Temples | Churches
