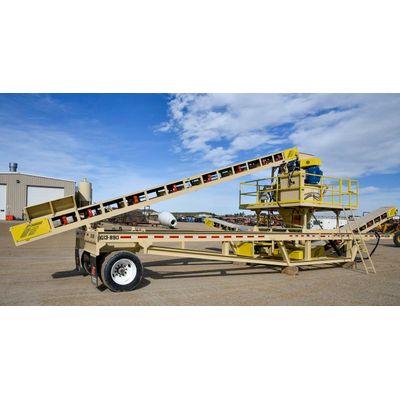

Fisher Industries - Model 76 -Portable Air Separator
The Fisher Air Separator is field proven in abrasive and non-abrasive applications. It has achieved successful separation of unwanted fines in limestone, granite, trap rock, basalt, silica, and sand & gravel applications. Designed with the portable contractor in mind, the Fisher Air Separator is easily set up, disassembled, and transported. The Fisher Air Separator will be ready to clean and classify your aggregate materials within a few hours.
Most popular related searches
air separator
air separation
hydraulic lifting
motorized pulley
lubricant system
conveyor belt lifter
hydraulic feed
conveyor system
- Designed for up to 60TPH of 3/8” (10mm) minus product
- 76” diameter Fisher Air Separator
- 75HP 1800RPM electric vibrator and VFD
- Automatic oil bath lubrication system
- Hydraulic lift system (Feed conveyor, Air Separator Lid, Air Separator Platform)
- Hydraulic lift lid for easy access into cone for inspection and repair
- Heavy-duty beam chassis
- Italvibras 1/2HP vibrator
- Walkway and handrail platform around separator
- Removable electrical panel stand with controls and power cord
- Single 25,000# 96” track hub pilot axle with brakes (10’ OD with tires), Neway airbag suspension, 285/75R 24.5 tires on 24.5 x 8.25 hub pilot wheel
- Specially designed wear liners bolted in wear areas
- 18” x 34’ feed conveyor with 7.5HP motorized head pulley with full-length covers and skirted (Hydraulically lifted into place)
- (2) 18” x 24’ discharge conveyors with 7.5HP motorized head pulley with full-length covers and skirted
- Available as a stationary unit (No chassis or conveyors included)
- 5th wheel = 16,000# Rear axle = 17,000#
- 11’-8” x 13’-5” x 41’
