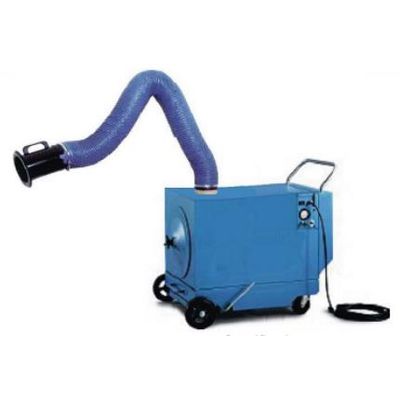

Lev-Co - Model PCH-2 - 1000 CFM 02-004 -Portable Cartridge Collector

The PCH-2 easily navigates common obstacles found on the shop floor such as air hoses, extension cords, etc. The HEAVY DUTY extraction arm is easily placed above or next to the emission source, hovering in place, allowing the fumes to be extracted at source before they contaminate the work environment or enter the operator`s breathing zone.
Main filters can be cleaned in place, without removal, by simply activating the VIBRA-PULSE® filter cleaning system, a simple reverse pulse cleaning mechanism that cleans the filters with compressed air from the inside out. The dust is then easily removed from a cam-lock sealed drawer.

Available Options:

• Filter Options
• Extraction Arms
• Fan/Motor Upgrades or Options
• Sound Attenuation
• Preventative Maintenance Pressure Gauges
• Variable Frequency Drives
• Fan, Light & Other electrical Accessories
• Control Panel Accessories

• 12, 14 &16 ga. welded steel cabinet with a powder-coated finish
• Includes full-width handle
• Removable end cap for easy access to filter
• Removable back panel for access to direct drive motor/blower compartment
• 2 - large 8” diameter front wheels and 2 - 5” diameter locking rear casters
• 2 foot wide “Push” handle that doubles nicely as a “Cord Caddy”
• 12Ga, 25’, safety yellow extension cord that comes standard with all 115/1/60 models

• Complete, Self-contained Unit: Includes 10-ft. E-Z Arm® High Flow Extractor Arm, blower, and filter cartridge.
• Direct-drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.
• Non-electrostatic Operation: High reliability, low maintenance.
• Compressed filter mounting: Eliminates contaminant bypass of filters.
• Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
• Low Profile Cabinet: Low center of gravity for easy maneuverability and arm positioning.
• Heavy Duty 25-ft. Power Cord: Maximizes system portability and positioning during operation.

Top 5 contaminants/processes/applications:

• Welding Smoke
• Grinding Dust
• Machining Dust
• Composite dust
• Fiberglass Dust

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

• PCH-2-1-1.5HP-1: 1000 cfm portable cartridge collector with (1) 10` long E-Z Arm ® high flow extractor (WITH DAMPER), (2) CLEAN-2 ® cartridge filter (150 sq.ft. of media), manual VIBRA-PULSE ® filter cleaning system, a 1.5 Hp TEFC motor 115/208-230/1/60Hz (15/7.9-7.5 amp. removable 10 gallon external dust drawer, 8" front wheels and 5" rear swivel casters, 66dBA
• PCH-2-1.5HP-2: 1000 cfm portable cartridge collector with (1) 10` long E-Z Arm ® high flow extractor (WITH DAMPER), (2) CLEAN-2 ® cartridge filter (150 sq.ft. of media), manual VIBRA-PULSE ® filter cleaning system, a 1.5 Hp TEFC motor 230/460/3/60Hz (15/7.9-7.5 amps), removable 10 gallon external dust drawer, 8 front wheels, and 5 rear swivel casters. 68 dBA. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation prior to shipping.
• PCH-2-1.5HP-3 : 1000 cfm portable cartridge collector with (1) 10` long E-Z Arm ® high flow extractor (WITH DAMPER), (2) CLEAN-2 ® cartridge filter (150 sq.ft. of media), manual VIBRA-PULSE ® filter cleaning system, a 1.5 Hp TEFC motor 575/3/60Hz (15/7.9-7.5 amps), removable 10 gallon external dust drawer, 8 front wheels, and 5 rear swivel casters. 68 dBA.  AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation prior to shipping.

• Filter Options (when ordering with main unit)
• Replacement Filters
• Sound Attenuation
• Preventative Maintenance Pressure Gauges (when ordering main unit)
• Variable Frequency Drives
