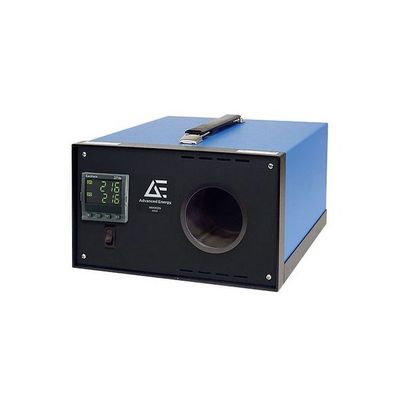

Advanced Energy - Model Mikron M310-HT -Portable, Compact Low Temperature Blackbody Calibration Source
Portable, Compact Low Temperature Blackbody Calibration Source with a Large Surface Area, Ambient +5 to 450°C. Advanced Energy`s Mikron M310-HT calibration sources are infrared radiators used for calibrating and verifying output signals of infrared thermometers (pyrometers), thermal imaging systems, heat flux management systems, or spectrographic analysis systems. Manufactured and tested to meet rigid quality control standards. Excellent general-purpose calibration. High accuracy and high resolution.
The Mikron® Calibration Source M310-HT is a portable blackbody calibration source utilizing a digital indicating temperature controller that may be set to any temperature between ambient +5 to 450°C (+9 to 842°F). A precision RTD temperature sensor is embedded in the blackbody emitter, providing high accuracy and repeatability.
The temperature controller uses industry-standard PID algorithms to control the emitter temperature to within 0.3°C of the set points. The blackbody emitter mechanism uses a resistive heating device that provides long life, short stabilization times, and stable temperature control.
Temperature set points are changed by pressing the up or down arrow buttons on the controller. The lower display is the set point and the upper display is the actual blackbody emitter temperature.
- Ensure fast heat-up times and high temperature stability
- Easily change temperature set points by pressing the up or down arrow buttons on the controller
- Experience a long life, short stabilization times, and stable temperature control
- Achieve high accuracy and repeatability
- Guarantee the quality of your calibration source
- High effective emissivity 1.00 at 8 to 14 µm
- Large aperture (3” diameter)
- Excellent stability ±0.3°C per 8-hour period
- Furnished with a certificate of calibration traceable to NIST
- RS232 serial communication included
Measurement Specifications
- Temperature Range: Ambient +5 to 450°C (+9 to 842°F)
- Temperature Uncertainty: 0.25% of reading ±1°C
- Accuracy calibration performed radio metrically, the uncertainty of emissivity and transfer standard are already included
- Temperature Resolution: 0.1 °C
- Stability: 0.3°C per 8-hour period Provided stable AC mains voltage and minimum air flow across the exit port or emitter plate
- Source Non-Uniformity: Approximately ±1°C at 250°C or ±2°C at 400°C
- Heated Emitter Shape: Flat Plate
- Exit Port Diameter: 76 mm (3.00 in)
- Emissivity: 1.00 effective emissivity at 8 to 14 pm
- Standard Calibration Method: Radiometric at 8 to 14 pm
- Temperature Sensor: Precision platinum RTD
- Warm-Up Time: < 30 minutes ambient to 400°C
- Slew Rate tore Stability: Approximately 6 minutes for a +50°C change
- Slew Rate to 0.1 °C Stability: Approximately 10 minutes for a +50°C change
Communication / Interface
- Remote Set Point: Via RS232
- Method of Control: Digital PID Controller
Environmental Specifications
- Operating Ambient Temperature: 0to44°C(30to110°F)
- Cooling: Fan cooled, air inlet on rear panel
- Operating Humidity: 90% RH max, non-condensing
- HxWxD: 207.3 x 280.4 x 266 mm (8.2 x 11 x: 10.5 in)
- Weight: 5.6 kg (12.4 lb)
- CE Certified: Yes
Electrical
- Power Requirements: 115 VAC ±10% 50 and 60 Hz 920 VA fused max, 600 W heater (230 VAC Optional)
