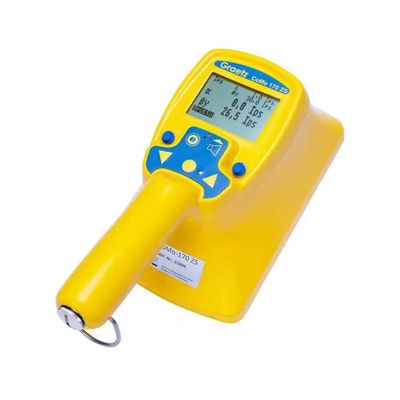

Graetz - Model CoMo-170 -Portable Contamination Monitor
The GRAETZ CoMo-170 is a powerful, mobile and battery or accumulator operated contamination monitor for highly sensitive nuclide-related measurement of surfaces for α-, β- and γ-contamination when handling ionizing radiation. The one-hand measuring system has a detector area of 170 cm² and automatically detects whether α-radiation is present. The measured value display is optionally pulses per second (Ip/s) or nuclide-related in Becquerel (Bq) and Bq/cm².
Most popular related searches
contamination monitoring
contaminant monitoring
gamma contamination
ionizing radiation
gamma monitoring
water protection
contaminant detection
scintillation detector
automatic monitoring
gas detection system
- Easy to use one-hand measuring system
- Fast inspection of large surfaces due to large detector area
- High-sensitivity nuclide-related measurement of surfaces for α-, β- and γ-contamination when handling ionizing radiation
- Dust and splash water protection (protection class IP54)
- High-performance, mobile contamination monitor with thin-layer plastic scintillation detector (complete elimination of gas-filled or gas-purged detectors).
- A detector can be used to make α-, β- and γ-sensitive measurements, and the measurement system automatically detects whether alpha radiation is present
- Possibility of simultaneous or selective measurement of α- and β-/γ-contaminations
- User-friendly user interface (operation via 5 function keys)
- Settings and measured value parameters protected by password
- Integrated measurement data storage, optional software for reading and processing the measurement data
- Connection option for various external probes, e.g. for dose rate measurement
- Automatic detection of the probes
- Optional stationary use in wall station with power supply
- In case of mechanical destruction of the detector foil, the repair can be carried out inexpensively by the user himself (no costly detector repair in the manufacturer’s factory necessary as with the xenon detector)
- Avoidance of high operating costs for gas flushing
Special versions:
- CoMo-170 ZS and F: adapted to the tasks of the civil defense and the fire department
- CoMo-170 DL: with additional GM counter tube integrated into the front face for measuring the dose rate
- CoMo-170/-300 G: for pure gamma measurements
