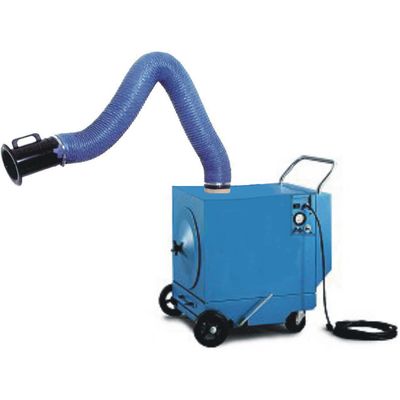

Lev-Co Mobi-Pulse - Model 1 - 800 CFM - 02-005 -Portable Dual Cartridge Collector

This Mobi-Pulse 1 portable has a low profile with a low center of gravity for easy maneuverability and arm positioning. This unit has high reliability and low maintenance due to its self-cleaning feature and easy access to the filter and dust drawer.

Available Options:

• Hood & Nozzle Accessories
• Filter Options
• Preventative Maintenance Pressure Gauges
• Variable Frequency Drives
• Silencer Option

• 10` Flexi-I Extraction arm (6" dia.) with damper
• One Clean2® filter cartridge (150ft² of media)
• Manual JET PULSE filter cleaning system
• 1 HP 115V/1/60 TEFC motor
• Centrifugal blower
• Removable 5-gallon dust drawer
• 5" front (fixed) & rear (swivel) casters
• 12, 14 &16 ga. welded steel cabinet with powder-coated finish
• Includes handles
• Removable cover for easy access to filter
• Removable back panel for access to direct drive motor/blower compartment
• ON/OFF switch
• Overload relay
• 10 ft. power cord

• Self-contained unit:everything is contained within the assembly. single footprint for storage
• Direct-drive blower: Higher static pressure, and long lasting reliability without the use of wear items such as belts and pulleys
• Non-electrostatic operation High reliability, low maintenance
• Low profile cabinet: Low center of gravity for easy maneuverability and positioning
• Heavy duty power cable: Maximizes system portability, and positioning during operation

Top 5 contaminants/processes/applications:

• Welding Smoke MRO-Maintenance repair & overhaul
• Grinding Dust
• Machining Dust
• Composite dust
• Fiberglass Dust

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

• MPLS1-160-2M: Mobi-Pulse-1 Filtration unit c/w (1) only 7` Flexi-I Extraction arm (6.5" dia.) with damper, Pulse filter cleaning system, a 1.5 HP 115/1/60 TEFC motor, centrifugal blower, removable 5 gallon dust drawer, 5” front (fixed) & rear (swivel) casters. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
• MPLS1-160-3M: Mobi-Pulse-1 Filtration unit c/w (1) only 10` Flexi-I Extraction arm (6.5" dia.) with damper, Pulse filter cleaning system, a 1.5 HP 115/1/60 TEFC motor, centrifugal blower, removable 5 gallon dust drawer, 5” front (fixed) & rear (swivel) casters. - AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

• Replacement Filters
• Hood & Nozzle Accessories
• Filter Options
• Preventative Maintenance Pressure Gauges (when ordering main unit)
• Variable Frequency Drives
• Silencer Option (when ordering main unit)
